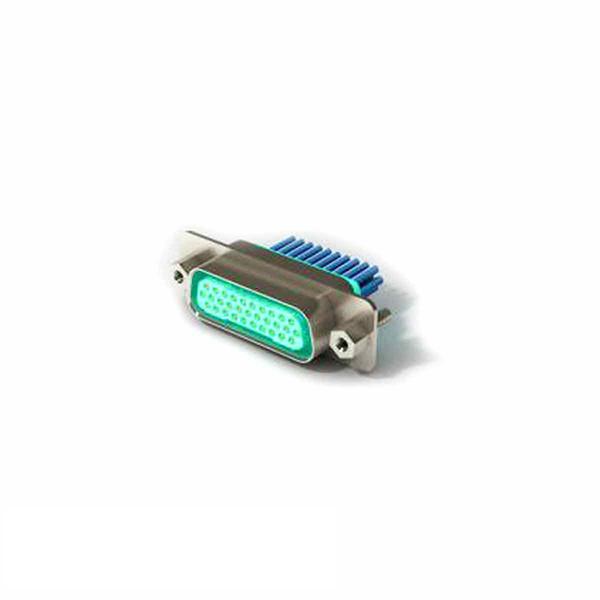

High-Performance CDb-19Z Pitch Electrical Connector for Reliable Connectivity

Introducing the CDb-19Z Pitch Electrical Connector, a cutting-edge solution designed to meet the demanding needs of modern electrical applications. With its 19-core configuration, this connector offers exceptional versatility for various wiring requirements. The compact 1.91 mm contact spacing and 1.65 mm row spacing allow for efficient use of space in tight assemblies, making it ideal for both industrial and automotive applications.

Engineered to support wire sizes between 0.1 mm² and 0.35 mm², the CDb-19Z ensures seamless crimping capabilities, enhancing installation efficiency. This connector is built to withstand extreme conditions, featuring an impressive operating temperature range from -55 °C to +125 °C. Its high insulation resistance of 5000 mΩ guarantees safety and reliability in diverse environments.

The CDb-19Z excels in durability with a mechanical life of 500 cycles, ensuring long-term performance. It is designed to endure significant impacts up to 490 m/s² and vibrations ranging from 10-2000 Hz at 196 m/s², making it perfect for applications subjected to rigorous conditions. With a current rating of 5 A and pressure resistance of up to 800 V, this connector meets stringent performance standards, including GJB2446 requirements.

Key Features of the HUADA CDb-19Z Connector

Number of Cores: The connector features 19 cores, allowing for multiple connections in a single compact unit.

Contact Spacing: The 1.91 mm contact spacing ensures efficient use of space and compatibility with various applications.

Row Spacing: With a 1.65 mm row spacing, the connector is designed for high-density wiring configurations.

Wire Size Compatibility: Supports wire sizes ranging from 0.1 mm² to 0.35 mm², accommodating different types of wiring needs.

Operating Temperature Range: The connector operates effectively in a wide temperature range from -55 °C to +125 °C, making it suitable for extreme environments.

Insulation Resistance: Offers an impressive insulation resistance of 5000 mΩ, ensuring safety and reliability in electrical applications.

Mechanical Life: Designed for a mechanical life of 500 cycles, providing durability and longevity in repeated use scenarios.

Impact Resistance: Capable of withstanding impacts up to 490 m/s², ensuring robustness in demanding conditions.

Vibration Resistance: Operates effectively under vibrations ranging from 10-2000 Hz at 196 m/s², suitable for dynamic environments.

Contact Resistance: Maintains a low contact resistance of 8 mΩ, ensuring efficient electrical conductivity.

Relative Humidity: Designed to function reliably in environments with up to 98% relative humidity at 40 °C.

Current Rating: Rated for a maximum current of 5 A, making it suitable for a variety of electrical loads.

Pressure Resistance: Can withstand voltages up to 800 V, ensuring safe operation in high-voltage applications.
