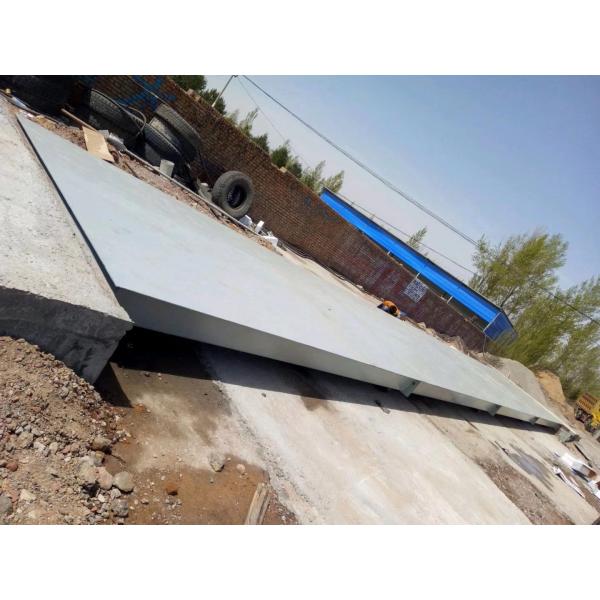

Concrete 80 Ton Electronic Lorry Weighbridge 220 - 300mm Channel Beam
Concrete 80 Ton Electronic Lorry Weighbridge 220 - 300mm Channel Beam
Specifications
Brand Name :
Pinglei
Model Number :
SCS
Certification :
ISO9001
Place of Origin :
Hebei
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 Sets Per Week
Delivery Time :
10 Days
Packaging Details :
Bulk
Accuracy Class :
OIML III Scales Standard
Accuracy :
5kg,10kg,20kg,50kg
Top plate thickness :
8mm,10mm,12mm,14mm
Indicator :
printer,installing software,big display
Loadcell brand :
Zemic,Keli or Mettler Toledo type
U beam height :
300-350mm
Channel beam :
220-300mm
U Beam thickness :
4mm,5mm,6mm,8mm
Description
Concrete 80 Ton Electronic Lorry Weighbridge Systems Printer Load Cells

1) Frame type,reinforcement bars to be welded at customer site
2) Steel frame dismountable
3) Optional in platform size, Max. Cap.
4) Optional in load cell, indicator.

Description:


1): Supply status: steel frame in H300 steel, more convenient for container
transportation and economic for transportation charge;
2): Reinforcement bars to be welded at customer's site;
3): With OIML R60 approved double shear beam load cells,LC110-30t
4): Width available: 3m,3.2m,3.4m
5): Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m
6): Max.Capacity available: 30t,40t,60t,80t,100t,120t
7): In one 40'container,7 pcs of 18m can be loaded in.

Applications:


1). Weighing
2). Net weight/tare
3). Weight accumulation


Competitive Advantage:


1): We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2): Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3): Easy installation, robust structure.

Specifications:

Size Length of module QTY of Module Load cell Qty.
3X6 1.5x6m 2 4
3X8 1.5x4m 4 6
3X9 1.5x4.5m 4 6
3X10 1.5x5m 4 6
3X12 1.5x6m 4 6
3X15 1.5x5m 6 8
3X16 1.5x5.33m 6 8
3X18 1.5x6m 6 8
