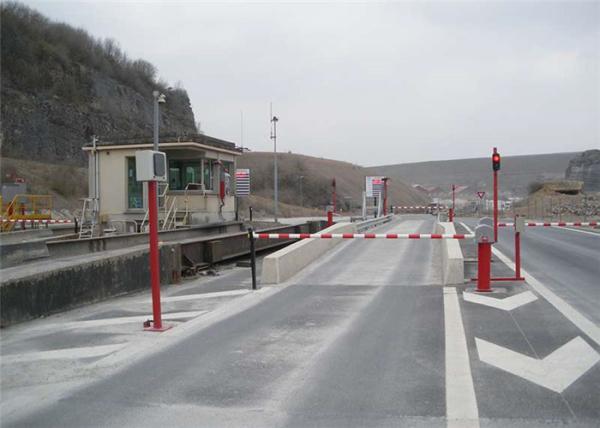

Full Steel Surface Mounted Weighbridge , Truck Weight Scale 5 - 10kg Accuracy
Full Steel Surface Mounted Weighbridge , Truck Weight Scale 5 - 10kg Accuracy
Specifications
Brand Name :
Pinglei
Model Number :
SCS
Certification :
ISO9001
Place of Origin :
Hebei
MOQ :
1 Set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets Per Week
Delivery Time :
10 Days
Packaging Details :
Bulk
Power Supply :
110-220V(AC)
Rated Load :
120 Tons
Accuracy :
5-10kg
Material :
Steel Plate, "U" Steel
Length Available :
6M, 9M, 12M, 16M, 18M, 24M
thickness :
8mm / 10mm
Description

Full Steel Digital Truck Scales Electronic Scale For Truck

Features of digital truck scales:


1. Numeral transformation technology and compensation
The Inner part of the weighing load cell contains module conversion device and CPU processing unit.
Auto-compensation with digital technology to the parameter of load cell such as non-linearity, temperature, etc.
Free of calibrating for the scale if the load cells are replaced.
2. With the calibrating and digital technology, bias-load (four corners) calibration of the truck scale can be completed only once.
3. Digital communications technology
The central line structure can be used by several weighing load-cells (up to 32) in the same system.
RS485 interface is used and long-distance signal transmission is possible, with the transmission distance not less than 1000m.
Output signal at 3~4V strengthens the capability of anti-interference and lightening protection of the system.
4. Intelligent technology
The parameter of the load cell can be changed according to the orders.
Different wave-filtering ways can be adopted according to different situations.
5. Module, standard and series scale body, multiunit assembly
6. Digital load cell of full-sealing column and laser-welded stainless steel, with accuracy of C3, strong water-proof and anti-corrosive function

Model

SCS-5t

SCS-10t

SCS-15t

SCS-20t

SCS-30t

SCS-50t

SCS-60t

SCS-80t

SCS-100t

SCS-120t

SCS-150t

Capacity(t)

5

10

15

20

30

50

60

80

100

120

150

Division(kg)

2

5

5

5

10

20

20

20

50

50

50

platform size

recommend standard

2*5

•

•

2.2*5 2.5*5

•

•

•

2.2*6 2.5*6

•

•

•

2.5*7 3*7

•

•

•

3*9

•

•

•

•

3*10

•

•

•

•

3*12

•

•

•

•

•

3*14

•

•

•

•

•

3*15

•

•

•

•

•

•

3*16 3.2*16

•

•

•

•

•

•

3*18/3.2/3.4*18

•

•

•

•

•

•

3/3.2/3.4*20

•

•

•

•

3/3.2/3.4*21

•

•

•

•

3/3.2/3.4*22

•

•

•

•

3.2/3.4*24

•

•

•

•

3.4*26

•

•

•
