Anti Interference Truck Axle Scales , Weigh Station Scales 150 Ton Capacity
Anti Interference Truck Axle Scales , Weigh Station Scales 150 Ton Capacity
Specifications
Brand Name :
Pinglei
Model Number :
SCS
Certification :
ISO9001
Place of Origin :
Hebei
MOQ :
1 Set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets Per Week
Delivery Time :
10 Days
Packaging Details :
Bulk
Type :
Digital Truck Scales
Rated Load :
40 Tons
Panel Size :
3*20m
Material :
Steel Plate, "U" Steel
Length Available :
6M, 9M, 12M, 16M, 18M, 24M
thickness :
8mm / 10mm
Description

Digital Truck Scales Weigh Scale Truck Equipment 3*20m 150Ton

SCS series electronic truck is a new generation of truck scale which depends on today’s domestic truck scale advantage. It’s gradually developed by our own technology and long period of overloading tests.

The main beam is sturdy Utype structure. The weighing platform panel selects Q235 flat and splices into the closed box-type structure, which is a reliable structure.

The welding technology, effectively ensure the flatness of such a large weighing platform, geometrical size and rational distribution of welding stress.

Welding platform design is standardizing, modularized, serialized, it can from to a variety of models freely, the system select high precision double shear beam or column weighing sensor, weighing indicator has rich features, strong storage and with a battery that can continue using when the power off, as well as a high precision, low temperature drift and stronger anti-interference stainless steel waterproof junction box, and signal shielded cable to make the measurements system multifunctional and reliable.

Type of Product

SCS-20

SCS-30

SCS-50

SCS-60

SCS-80

SCS-100

SCS-120

SCS-150

SCS-200

Max. Weighing capapcity (t)

20

30

50

60

80

100

120

150

200

Division(kg)

5

5

10

10

20

20

20

50

50

Sensor Cap. (t)

10

20

20

20

30

30

30

40

40

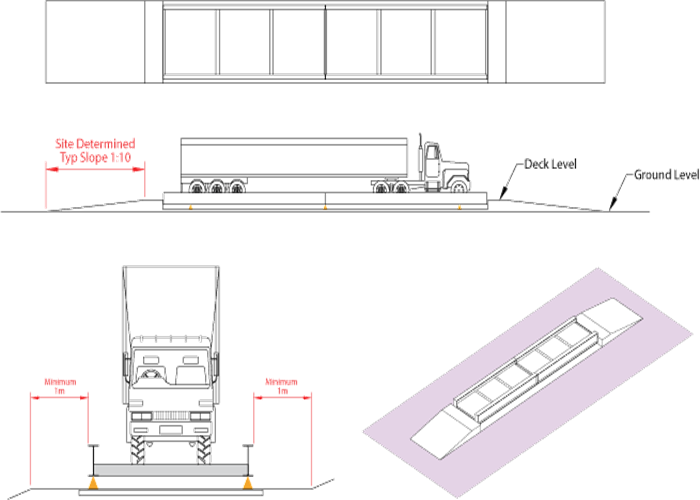

Platform size W*L(m)

Optimization Specification

2.2*5m

Y

2.5*6m

Y

Y

3*7m

Y

3*8m

Y

Y

Y

3*9m

Y

Y

Y

3*10m

Y

Y

Y

3*12m

Y

Y

Y

Y

3*15m

Y

Y

Y

Y

3*16m

Y

Y

Y

Y

Y

3*18m

Y

Y

Y

Y

Y

Y

3.2*18m

Y

Y

Y

Y

Y

3.4*18m

Y

Y

Y

Y

Y

3.2*20m

Y

Y

Y

Y

Y

3.4*20m

Y

Y

Y

Y

3.4*22m

Y

Y

Y

Y



Anti Interference Truck Axle Scales , Weigh Station Scales 150 Ton Capacity
