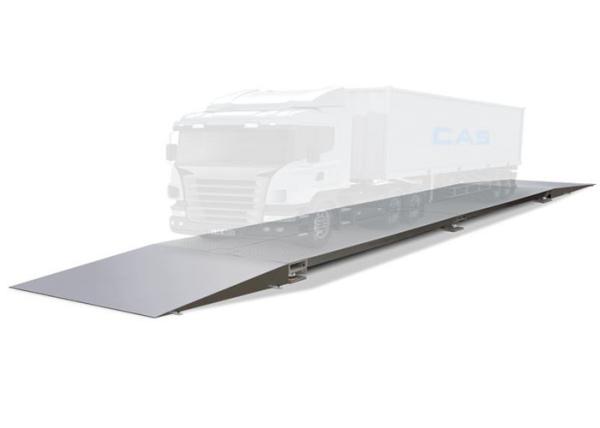

8 PCS Load Cell Industrial Truck Scales , Wireless Truck Scales Zero Range Setup
8 PCS Load Cell Industrial Truck Scales , Wireless Truck Scales Zero Range Setup
Specifications
Brand Name :
Pinglei
Model Number :
SCS
Certification :
ISO9001
Place of Origin :
Hebei
MOQ :
1 Set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets Per Week
Delivery Time :
10 Days
Packaging Details :
Bulk
Capacity :
80 tons
Platform Size :
3x16m
Load Cell :
8 pcs
Material :
Steel Plate, "U" Steel
Length Available :
6M, 9M, 12M, 16M, 18M, 24M
thickness :
8mm / 10mm / 12mm / 14mm
Description

80t Digital Truck Scales 3x16m Used Weighbridge BalanceTruck Scale

Introduction of indicator

Save 255 vehicle ID/net weight, 100 cargo ID, and 512 weighing records
Weighing data save protection in case of power off
Mini printing function, KG/LB switch
A/D conversion with readability 1/30000
Zero range setup (auto/manual)
Auto/manual, daily/sorted report print setup
Fast filled weighing bill print setup
Manual linearity-correction calibration
Max. 5-point non-linearity correction
Humidity: <95%
Working temperature: -10~+40 Centigrade

Introduction of bridge-typed load cell for weighing scale

Alloy steel, nickel plated, hermetically welded, oil proof, waterproof and anti-corrosion
Dual shear beam, easy installation
High accuracy and reliable performance
Suitable for electronic truck/ railway scales and other electronic weighing devices

Introduction of weighing platform

The structure is enclosed construction with 6 U-shaped beams. Compared with normal structure with I-shaped beams, weighing scale that enclosed design has two advantages--one is to keep off corrosion from inside out protect platform; the other one is more rigid since 6 U-shape beams has 12 support lines than 6 I-shaped beams' and besides stress from truck etc can be divided equally. And surface of platform is covered with epoxy zinc rich primer and acrylic marine paint--the former, is for the first surface layer, whose main function is corrosion protection and to reducing chalking; while, the second layer is acrylic marine paint which is anti-acid, anti-alkali and anti-scratch.

Parameters:

Platform Size: customized also available

Item

Capacity(MT)

Platform Size(m)

Module/Section

Load Cell

Graduation

SCS-20t

20

2.3×5m

1/1

4

5 kg

2.3×8m

2/2

6

SCS-30t

30

3×5.8m

1/2

4

10 kg

3×9m

2/4

6

3×11.4m

2/4

6

SCS-50/

60t

50/60

3×9m

2/4

6

10 kg

3×11.4m

2/4

6

3×16m

3/6

8

SCS-80t

80

3×11.4m

2/4

6

20 kg

3×16m

3/6

8

3.2×16m

3/6

8

SCS-100t

100

3×14m

2/4

6

50 kg

3×16m

3/6

8

3.4×18m

3/6

8

SCS-120t

120

3×16m

3/6

8

50 kg

3.2×18m

3/6

8

3.4×21m

4/8

10

SCS-150t

150

3×16m

3/6

8

50 kg

3.2×18m

3/6

8

3.4×21m

4/8

10
