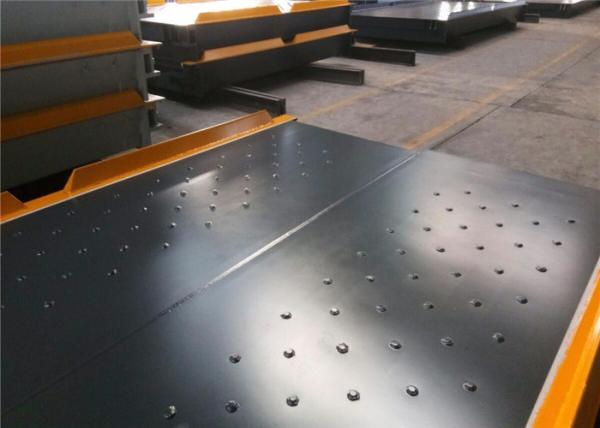

Thickness 12MM ZEMIC Load Cell Truck Weighbridge 3X21Meters

Product Features:

1.Using A+B+A+B+A Type ,A is separated Load cell installation frame.,B is steel structure scale body for loading .

2.Using 200mm height mini U beam and increase the strength by using the back cover plate.

3.Use strong bolts to connect the frame and the scale bodies. This design is more safe than the old structure. Because old structure have to make the scale bodies upside down to connect the separated part. And this process is dangerous. The new structure can connect from the above.

Equipment specifications:

1) Installation: shallow pit / no pit
2) Safety overload: 125% scale body; sensors 150%
3) Power supply voltage:. AC 220V + 10%, 50Hz.
4) weighing platform overload warning device
5) vertical and horizontal scale units are located in the buffer stop, prevent over-driving the vehicle, brakes, etc. have an impact force and lateral force to protect the instrument.
6) Scale Countertops made of high quality steel, thickness 10mm, to ensure adequate strength, long-term use is not deformed.
7) Biography junction box made of stainless steel to prevent corrosion.
8) transmission cable according to the national standards for installation protection, neatly furnished reasonable.
9) The information collection device is stable, accurate, and reliable. Printout convenient, durable and reliable high-speed low-noise. Scale platform designed structure, the overall rigidity, ensure long-term use of deformation, to ensure measurement accuracy of the scale body.
10) All surfaces to be painted thoroughly before painting the appearance of quality and rust treatment. Sandblasting steel surface pretreatment, meet the overall scale body wear, pressure, acid, alkali and corrosion ability requirements.

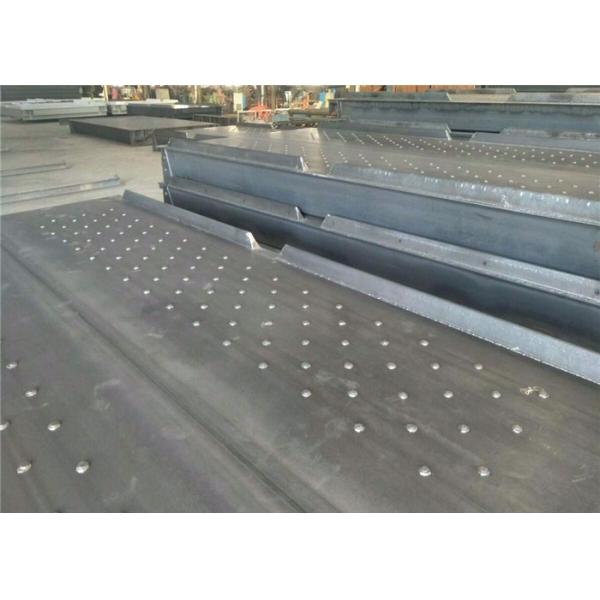

11) the use of cold-formed U-shaped steel weighing platform with steel plate welded to form a stable box girder structure, selection of well-known domestic iron and steel enterprises steel.
12). Part of material quality standards in line with national norms.
13). Weighbridge surface rust brush Hongdan fire twice, paint brush again.
