3X18 Meter Heavy Duty Weighbridge ZEMIC Load Cell U Beam Design
3X18 Meter Heavy Duty Weighbridge ZEMIC Load Cell U Beam Design
Specifications
Brand Name :
PINGLEI
Model Number :
SCS
Certification :
ISO9001
Place of Origin :
SHIJIAZHUANG
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
50 SETS PER WEEK
Delivery Time :
ONE WEEK
Packaging Details :
IN BULK
SIZE :
3*18METER
CAPACITY :
100 TONS
LOAD CELL :
ZEMIC BRAND
PLATE THICKNESS :
10MM
U BEAM :
6MM
INDICATOR :
DS3
Description

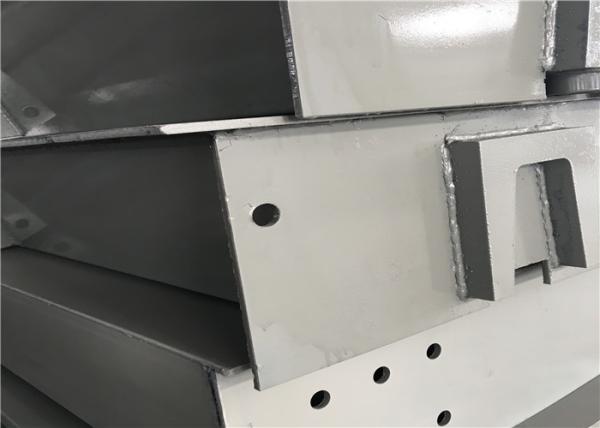

U Beam Design 3X18 Meter For Capacity 100 Ton ZEMIC Load Cell

U-Shaped Scale structure with a new concept of bridge design, with reasonable structure, stable quality, easy exchange and many other advantages. u steel scale body.
According to the principle of the bridge structure, with U-shaped beam at the bottom of the support, there is no closure of the floor, there is no mold partition.


Advantages:


1. We use the bridge design technology on the platform
2. Simple structure, automated processing by machine
3. Uniform force, deformation is small
4. Beautiful appearance
5. Product configuration flexibility, good interchangeability
5. Mass production, product quality and stability
7. Selection of standardized, easy to bulk purchas

Plate:8-14mm checker plate with coating painting /6-8 Pcs U beam design
Sensor:keli or Zemic with OimL certificate sensor
Junciton:Ss yaohua or Tensent waterproof junctionbox
U beam thickness design with 6mm
Pre camber machine to making platform have a high curves in Middle of platform
Auto welding machine to ensure welding is smooth and good strength
Shot blasting clean all dirty before painting

Type
Dimension(m)
Section
Capacity(t)
Load cell Qty
SCS-PL6
3*6
1
20~30
4
SCS-PL7
3*7
1
20~30
4
SCS-PL8
3*8
2
50~60
6
SCS-PL9
3*9
2
50~60
6
SCS-PL10
3*10
2
50~60
6
SCS-PL12
3*12
2
50~60
6

SCS-PL14
3*14
3
50~60
8
SCS-PL16
3*16
3
50~60
8
SCS-PL18
3*18
3
80
8
SCS-PL20
3*20
4
80
10
SCS-PL22
3*22
4
80
10
SCS-PL24
3*24
4
80
10
Note:
1)8mm thick checker plateor 10mm thick smooth plate
2)300mm high U beam 4 pcs, 2 pcs C channel
3)with OIML approved double shear beam load cells,
4)without indicators

3X18 Meter Heavy Duty Weighbridge ZEMIC Load Cell U Beam Design
