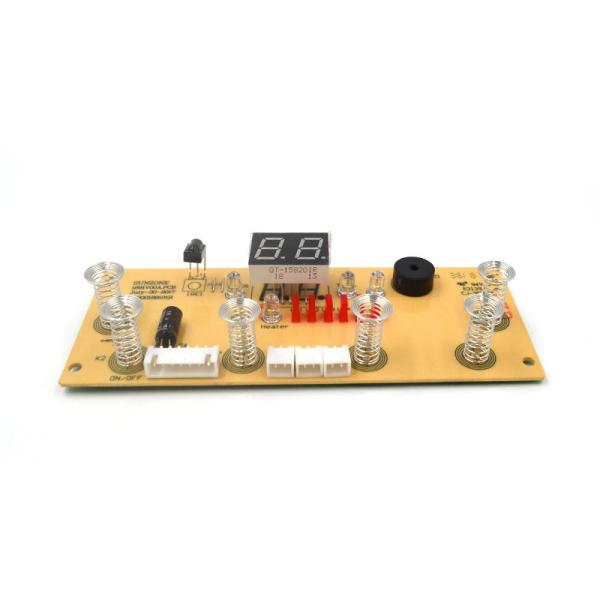

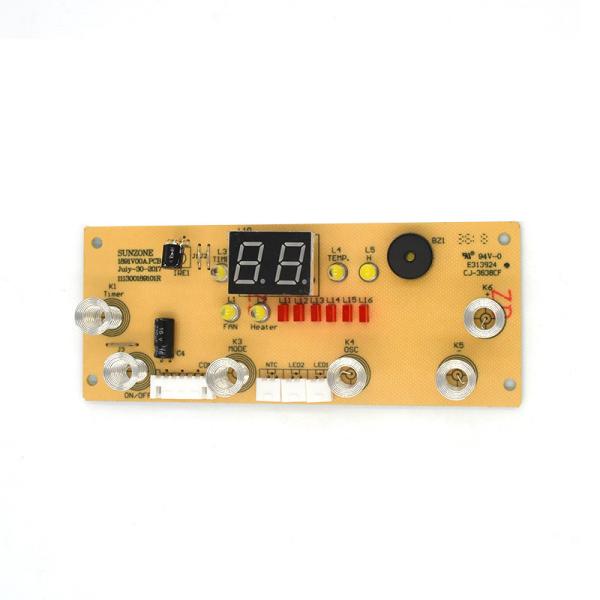

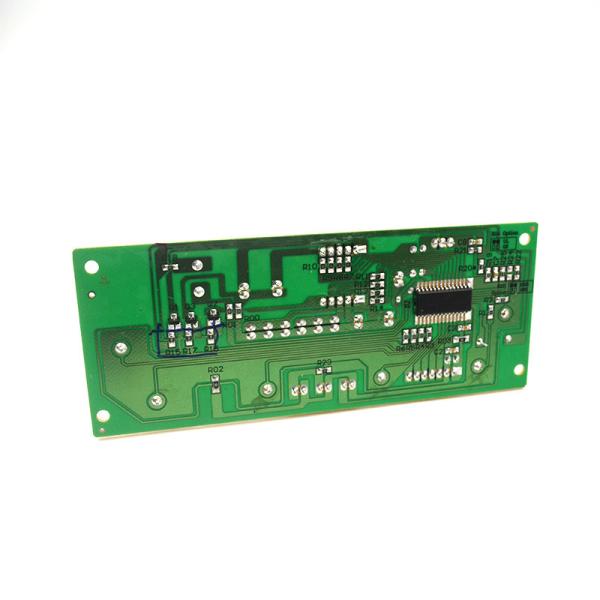

Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan
Specifications
Model Number :
017
Place of Origin :
Guangdong, China
Packaging Details :
1.Inner:Vacuum Packing 2.Outer: Standard export carton 3.Customized package.
Supply Ability :
80000piece/month
Price :
To be negotiated
Brand Name :
GUYLAND
Certification :
ISO9001
MOQ :
1000 pieces
Delivery Time :
30-40days
Payment Terms :
TT
Type :
home appliance pcba
Supplier Type :
Manufacturer
Application :
Smart Home
Port :
SHENZHEN
Board thickness :
0.2mm-4mm
Copper thickness :
0.1oz-8oz
Material :
FR4 CEM1 CEM3 Hight TG,CEM3 Rogers Etc
Service :
PCB&PCBA Design&Clone&Production,One-stop Service
Description

PCBA Circuit Board For Cold Air Fan Customized Electronic Single-Sided Copper Circuit Board

Item Specification
1 Numbr of Layer 1-18Layers
2 Material FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate
3 Surface Finish HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek)
4 Finish Board Thickness 0.2mm-6.00 mm(8mil-126mil)
5 Copper Thickness 1/2 oz min;12 oz max
6 Solder Mask Green/Black/White/Red/Blue/Yellow
7 Min.Trace Width & Line Spacing 0.075mm/0.1mm(3mil/4mil)
8 Min.Hole Diameter for CNC Driling 0.1mm(4mil)
9 Min.Hole Diameter for punching 0.9mm(35mil)
10 Biggest panel size 610mm*508mm
11 Hole Positon +/-0.075mm(3mil) CNC Driling
12 Conductor Width(W)

0.05mm(2mil)or;

+/-20% of original artwork
13 Hole Diameter(H)

PTH L:+/-0.075mm(3mil);

Non-PTH L:+/-0.05mm(2mil)
14 Outline Tolerance

0.125mm(5mil) CNC Routing;

+/-0.15mm(6mil) by Punching
15 Warp & Twist 0.70%
16 Insulation Resistance 10Kohm-20Mohm
17 Conductivity <50ohm
18 Test Voltage 10-300V
19 Panel Size 110×100mm(min);660×600mm(max)
20 Layer-layer misregistration

4 layers:0.15mm(6mil)max;

6 layers:0.25mm(10mil)max
21 Min.spacing between hole edge to circuity pqttern of an inner layer 0.25mm(10mil)
22 Min.spacing between board oulineto circuitry pattern of an inner layer 0.25mm(10mil)
23 Board thickness tolerance

4 layers:+/-0.13mm(5mil);

6 layers:+/-0.15mm(6mil)
24 Impedance Control +/-10%
25 Different Impendance +-/10%


Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan


Single Sided Copper Electronics Assembly Services Pcb Board 4mm For Cold Air Fan

FAQ

1. Q: Are you manufacturer or trade company?

A: We are the Manufacturer.
2. Q: How can I get the samples? Can you send free samples?
A: We appreciated that you can accept to pay the sample cost and sample freight.
3.Q: When's the delivery time for the sample?
A: The samples will be ready for 7~15 days.
4. Q: Do you offer OEM&ODM service?
A: Yes, we do.
5. Q: When's the delivery time for the order?
A: 10days for small orders , for bulk order , 20-25days days after the receipt of deposit. ltis up to your order quantity and product BOM.
6. Q: What is your minimum order quantity?
A: At least 100pcs for each item,different product different MOQ.
7. Q: What is your payment term?
A: T/T(50% before production and 50% before shipment)
8. Q: What is your shipping ways?
A : For sample we usually send by DHL,FEDEX,UPS,THT,EMS(taking 5-7businessdays). For bulk production we shipping by sea or by air.
9. Q: How do your factory control quality?
A: Quality is the most important part for us. In order to control quality better, We have pro-fessional QC.All our products pass 4 times inspection by QC before delivery.
