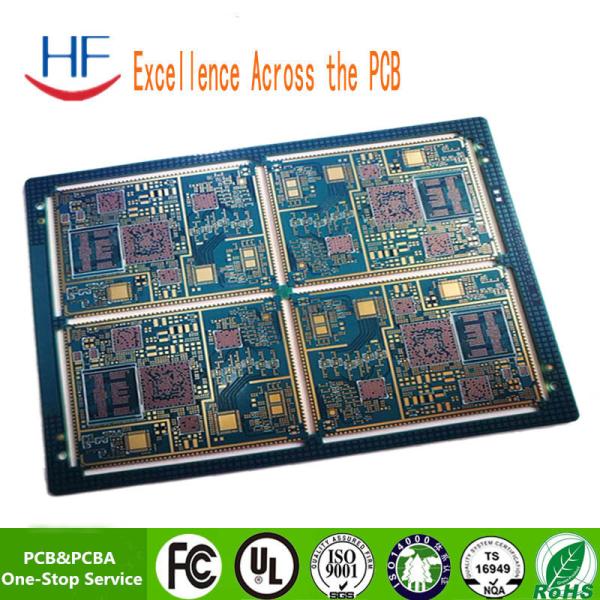

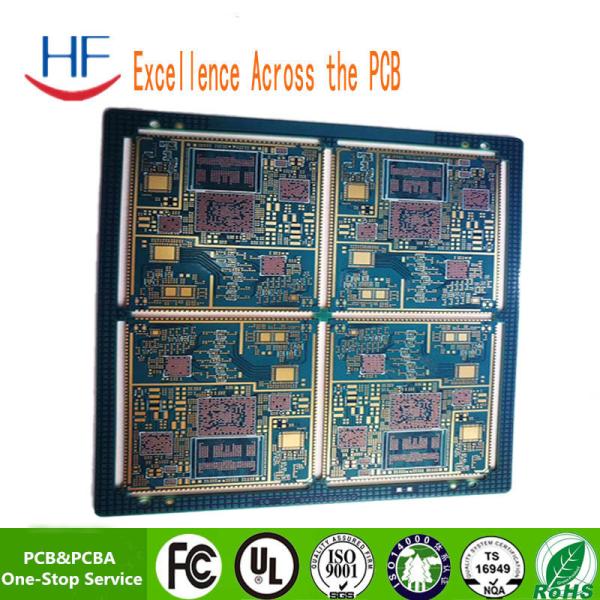

Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb
Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb
Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb
Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb
Specifications
Brand Name :
HF
Model Number :
Double Sided PCB
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,PAYPAL
Supply Ability :
Ten thousand square meters per month
Delivery Time :
5~8 days
Packaging Details :
High quality carton packing, high quality vacuum packing,
Base Material :
FR-4
Number of plies :
2 Layer
Board Thickness :
2.0mm
Copper Thickness :
1oz
solder color :
blue
silkscreen color :
white
surface finishing :
immersion gold
service :
One Stop Turnkey service
Material :
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun :
1-40
Solder Mask color :
green, yellow,white, blue,black,red
Test :
100% AOI, X-ray, Flying probe test.
Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.

category project Description
Base Material fr-4 ,PTFE ,Polyimide Ordinary Tg, medium Tg, high Tg, halogen free, Low Dk, Low loss, high CTI, PTFE
LAYER Rigid PCB 1-32LAYER

fpc PCB 0-10LAYER
Rigid -Flexible PCB 2-18LAYER
Board Thickness Rigid PCB 0.4-6.0MM
fpc PCB 0.05-0.36MM
Rigid -Flexible PCB 0.4-6.0MM
Copper Thickness inner layer 0.5-8.0 OZ
outer layer 0.5-8.0 OZ
Surface Finishing Hasl 0.3-1.0um
Immersion Gold 0.025-0.1um
OSP 0.2-0.6um
Immersion tin 0.8-1.2um
Solder mask color outer layer Green,black,white,blue,yellow,red
Character color outer layer white ,black, yellow
Min. Line Width inner layer 0.05/0.05MM
outer layer 0.05/0.05MM
Min. Line Spacing inner layer 0.05/0.05MM
outer layer 0.05/0.05MM
Drill Hole Max Diling dameter 6.5MM
Min Diling Diameter 0.1mm
MinSlot 0.60MM
Drilig tolerance PTH:+/-0.075mm NPTH:+/-0.05mm
Slot tolerance PTH:+/-0.10mm NPTH:+/-0.05mm
Board Size Rigid PCB 800*2000MM
fpc PCB 200*800MM
Rigid -Flexible PCB 200*500MM
Drill Aspect Ratio Mechanical hole 12.0:1.0
blind hole 1.0:1.0
Solder mask bridge green oil 0.08MM
white,blue,yellow,red 0.1MM
black oil 0.12MM
Bow and Twist Rigid PCB 0.5-0.75%
core thickness Rigid PCB 0.075MM (excluding copper)
Resin plug hole hole size 0.2-0.35mm
Carbon oil thickness 10um(min)
V - cut Rigid PCB 30 45 60 (Tolerance: + / - 5 degrees)
impedance 50-120 ohm Tolerance: + / - 10 %
PP type Commonly used 1080,2116,7628 ,106

Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb

Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb

Immersion Gold 18mm Double Sided Printed Circuit Board Two Layer Pcb
