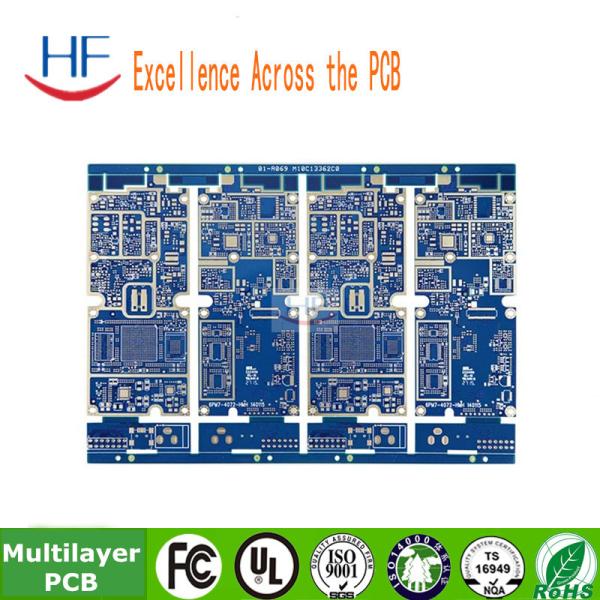

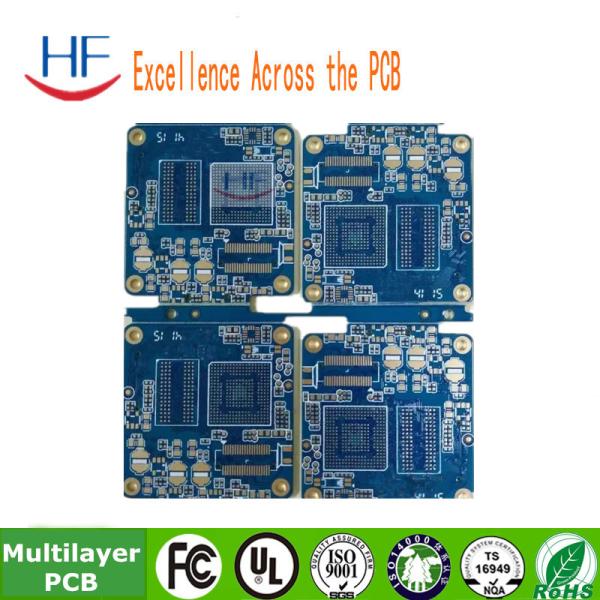

Blue Multilayer PCB Fabrication Ceramic 8 Layer 1.6MM Double Sided
Blue Multilayer PCB Fabrication Ceramic 8 Layer 1.6MM Double Sided
Blue Multilayer PCB Fabrication Ceramic 8 Layer 1.6MM Double Sided
Blue Multilayer PCB Fabrication Ceramic 8 Layer 1.6MM Double Sided
Specifications
Brand Name :
HF
Model Number :
Multilayer PCB
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Delivery Time :
5~8 days
Packaging Details :
box/carton packing
Payment Terms :
L/C, T/T,PAYPAL
base materil :
FR4
layer count :
8
board thickness :
1.6
copper thickness :
1oz
solder color :
blue
silkscreen color :
white
surface finishing :
immersion gold
service :
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing
Material :
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun :
1-40
Solder Mask color :
green, yellow,white, blue,black,red
Test :
100% AOI, X-ray, Flying probe test.
Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.
Our main products are PCB customization and OEM , among which PCB customization products are divided into multi-field PCB, HDI PCB, high frequency and high speed PCB, special PCB.OEM products are divided into multi-field PCBA OEM and component OEM.


Capability

　High precision prototypePCB bulk production
Max Layers1-28 layers1-14 layers
MIN Line width(mil)3mil4mil
MIN Line space(mil)3mil4mil
Min via (mechanical drilling)Board thickness≤1.2mm0.15mm0.2mm
Board thickness≤2.5mm0.2mm0.3mm
Board thickness＞2.5mmAspect Ration≤13:1Aspect Ration≤13:1
Aspect RationAspect Ration≤13:1Aspect Ration≤13:1
Board thicknessMAX8mm7mm
MIN2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size610*1200mm610*1200mm
Max copper thickness0.5-6oz0.5-6oz
Immersion Gold/
Gold Plated Thickness		Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		　
Hole copper thick25um 1mil25um 1mil
ToleranceBoard thicknessBoard thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance±10%±10%
MIN Solder mask bridge　0.08mm　0.10mm
Plugging Vias capability　0.25mm--0.60mm　0.70mm--1.00mm

Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
