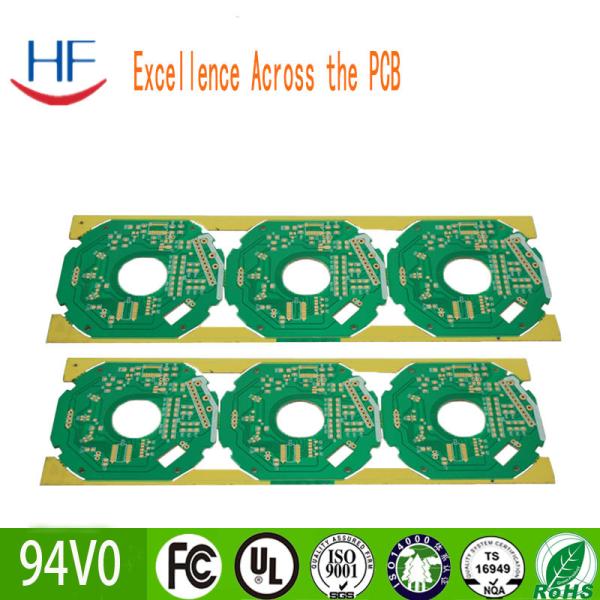

FR4 Material Single Sided Printed Circuit Board 1.6mm Surface Finish Osp Line Width 0.35mm
FR4 Material Single Sided Printed Circuit Board 1.6mm Surface Finish Osp Line Width 0.35mm
FR4 Material Single Sided Printed Circuit Board 1.6mm Surface Finish Osp Line Width 0.35mm
FR4 Material Single Sided Printed Circuit Board 1.6mm Surface Finish Osp Line Width 0.35mm
Specifications
Brand Name :
HF
Model Number :
Single Sided PCB Board
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Delivery Time :
5~8 days
Packaging Details :
box
Payment Terms :
L/C, T/T,PAYPAL
material :
Fr4
layer count :
1
board thickness :
1.2
copper thickness :
1oz
solder color :
green
silkscreen color :
white
surface finishing :
osp
service :
One Stop Turnkey service
Layer Coun :
1-40
Solder Mask color :
green, yellow,white, blue,black,red
Test :
100% AOI, X-ray, Flying probe test.
Description

Capability

　 High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness		 Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		 ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.25mm--0.60mm 　0.70mm--1.00mm


Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
