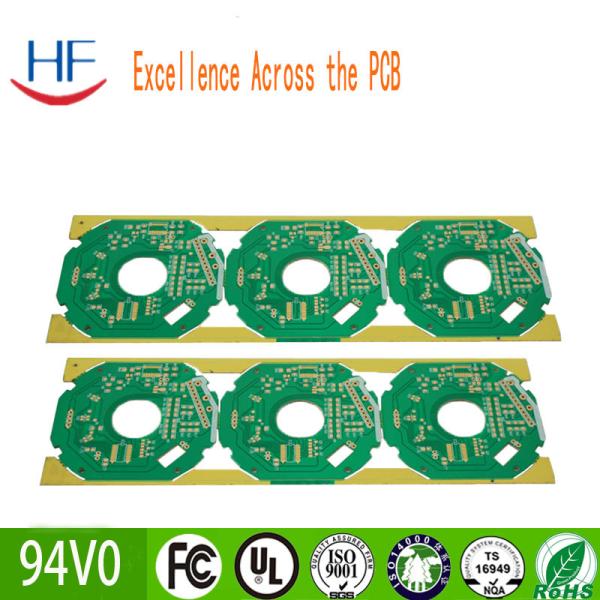

Single Side PCB Printed Circuit Board 1.6mm Thick 1oz No Solder Mask
Single Side PCB Printed Circuit Board 1.6mm Thick 1oz No Solder Mask
Single Side PCB Printed Circuit Board 1.6mm Thick 1oz No Solder Mask
Single Side PCB Printed Circuit Board 1.6mm Thick 1oz No Solder Mask
Specifications
Brand Name :
HF
Model Number :
single PCB
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,PAYPAL
Delivery Time :
5~8 days
Material :
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
layer count :
1-28
board thickness :
0.4-3.2mm
copper thickness :
1-4oz
solder color :
green, yellow,white, blue,black,red
silkscreen color :
white,black,yellow
surface finishing :
HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver
service :
One Stop Turnkey service,PCBA
Layer Coun :
1-40
Solder Mask color :
green, yellow,white, blue,black,red
Test :
100% AOI, X-ray, Flying probe test.
Description

Specifications

Item Requirement Result ACC REJ
Laminate Type FR-1 FR-1 √
Supplier KB KB √
Board thickness 1.60±10% mm 1.61-1.65 mm √
Outer copper foil >=35 ｕm 44.17 √
Inner copper foil / / √
Warp-twist <= 0.75% 0.68% √
legend Type KUANG SHUN KUANG SHUN √
Color Black Black √
Location CS CS √
Marking Co.logo / / √
UL.logo / / √
Date code / / √
Marking form / / √
Location / / √
Min line width (mil) 7.874 8.1 √
Min line spacing (mil) 6.5 6.3 √
Min ring width (mil) NA NA /
Solder Mask Type / / √
Color / / √
Thickness / / √
Pencil Test / / √
SOLVENT TEST / / √
TAPE TEST / / √
Surface treament Lead free HASL OK √
Special Treament Silk screen / / √
Location / / √
Forming V-cut OK √
Normal Testing Electrical test 100% PCB passed OK √
Visual inspection IPC-A-600H&IPC-6012B OK √
Solderability Test 245℃ 5S 1 Cycle OK √
Final inspection report
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)
NO Required PTH Actual dimension ACC REJ
1 2.050±0.05 N 2.050 2.025 2.075 2.050 √
2 3.000±0.05 N 3.000 2.975 3.025 3.000 √
V-CUT Finish dimension (unit: mm): including
NO Required Dimension (tolerance) Actual dimensin ACC REJ
1 260.99±0.15 261.01 260.89 261.07 261.10 √
2 230.00±0.15 229.88 229.94 230.05 230.09 √
Reference engineering information
Hole drill drawing ACC
Conductor and film ACC
Solder mask and film ACC
Legend and film ACC
Engineering changing ACC
E-test Report
Test Type General Test Parameter
Special Test Votage 250V
Single mould Test Curent 100 m A
Double mould √ Conducting Resistance 20 M ohm
Flying probe Test √ Isolated Resistance 20 M ohm
Test Points 160 All Open Test Qualified √
Failure
The first pass Qty 358 All short Test Qualified √
Failure
Reject Qty 2 pcs The first pass Rate 99%
Mian Dwfect Desciption:
1 Open Qty 0 PCS Repaired Qty 0 PCS Scrap 0 PCS
2 Short Qty 0 PCS Repaired Qty 0 PCS Scrap 0 PCS
3 Con. Defect 0 PCS Repaired Qty 0 PCS Scrap 0 PCS
4 Isolated Defect 0 PCS Repaired Qty 0 PCS Scrap 0 PCS
5 Others 2 PCS Repaired Qty 0 PCS Scrap 2 PCS
Remark:
Microsection Analysis Report
purpose & Req Hole wall Trace
Copper ≧ 20 um Surface copper 35 um
Nickel ≧ 0 um Base copper 11 um
Au ≧ 0 um V/X
Tin/Lead ≧ 3.92 um
Roughness ≦ 25 um
Hole wall position Unit: ｕm A B C D E F Average Roughness Speciment Location
Drill Plated
1 25.600 24.400 24.460 26.100 25.380 25.010 25.158 21.529 21.629
2 24.221 23.021 23.081 24.721 24.001 23.631 23.779 19.327 19.427
3 25.513 24.313 24.373 23.013 25.293 24.923 25.071 17.290 17.390
Trace Copper Base Copper Solder mask thickness T/L THK Ni THK Au THK Speciment Location
1 44.90 12.95 13.60 5.25
2 44.94 12.81 12.08 8.25
3 42.66 10.52 15.23 6.25
Defects Inspection
Found NO Found
1.Plating crack √
2.Resion recession √
3.Plating void √
4.Delamination √
5.Smear √
6.Copper crack √
7.Blistering √
8.Interconnection separation √
9.Laminate void √
10.wicking √
11.Nail Heading √
Reliability Test Report
NO. Item Requirement Test freqency Test result
1 Solderability test 245±5℃ 5sec wetting area least 95% 1 ACC
2 Thermal Stress 288±5℃ 10sec, 3 cycles Check delamination Blistering,hole wall 1 ACC
Single Side PCB Printed Circuit Board 1.6mm Thick 1oz No Solder Mask
