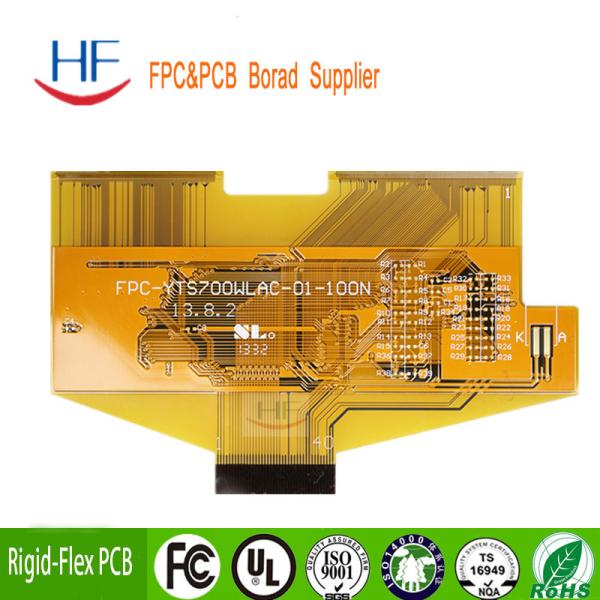

3mil HASL FPC Flex PCB Board 4oz For Bluetooth Headphones Speaker
3mil HASL FPC Flex PCB Board 4oz For Bluetooth Headphones Speaker
Specifications
Brand Name :
HF
Model Number :
PCB
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,PAYPAL
Supply Ability :
Ten thousand square meters per month
Delivery Time :
5~8 days
Packaging Details :
Vacuum packing, high quality carton
Base Material: :
FR4 ,PI
layer count :
1-10 Layer
Board Thickness: :
0.1-1.0mm
Copper Thickness: :
1-4oz
solder Color :
green,Red,Black,Yellow,White,Blue
silkscreen color :
white
surface Finishing: :
HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver
Min. Hole Size :
3mil
Service :
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey service,PCBA
Material :
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun :
1-40
Board Thickness :
0.4-4.0mm
Copper Thickness :
1-6oz
Solder Mask color :
green, yellow,white, blue,black,red
Surface Finishing :
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Test :
100% AOI, X-ray, Flying probe test.
Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.

　 High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness		 Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		 ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.25mm--0.60mm 　0.70mm--1.00mm

3mil HASL FPC Flex PCB Board 4oz For Bluetooth Headphones Speaker

What′s critical to getting Your Engineering Design Built ASAP?

1. Get PY team on-board early in the process. We are here to serve you at every step of the process: From product conception thru. Manufacture of your design.

2. Provide complete information necessary to build your Design (See PCB Board Layout Quote Page ). Missing or incorrect information/files can delay your project. At the same time Huafu Fast′s team will assist you to developing any missing or incomplete information for your Design, Layout, or Manufacturing Package.

3. Communication is Key - If your project is time critical - start the communication process early. You will be amazed how working together can positively impact product: Quality, cost, reliability, and cycle time reduction for NPI & NPD and production. It also is a great support to building mature products that need to get done right.

4. If important to you provide a 24 hour contact name and number to keep your project moving in the event of design, manufacturing, and/or documentation questions.

5. Once the PCB Board Layout is complete and sent to you, check it thoroughly and release for fabrication and assembly ASAP.

Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc


3mil HASL FPC Flex PCB Board 4oz For Bluetooth Headphones Speaker

3mil HASL FPC Flex PCB Board 4oz For Bluetooth Headphones Speaker

3mil HASL FPC Flex PCB Board 4oz For Bluetooth Headphones Speaker
