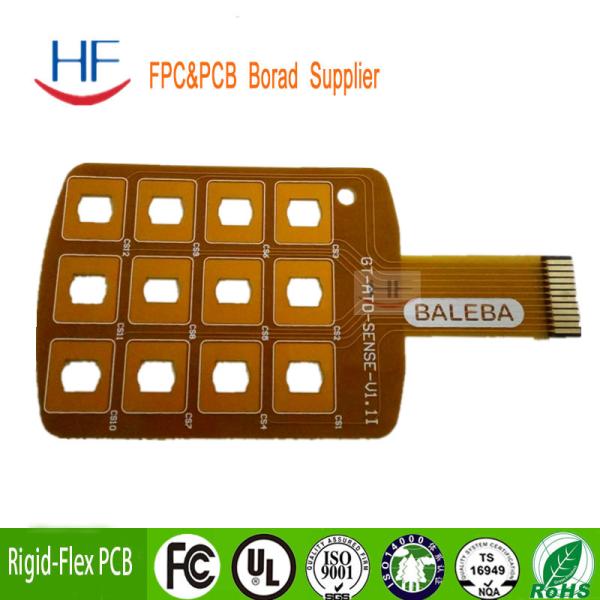

Lead Free 3 Layer Pcb Circuit Board Electrical FR4 FPC FPCBA
Lead Free 3 Layer Pcb Circuit Board Electrical FR4 FPC FPCBA
Specifications
Brand Name :
HF
Model Number :
FPC
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,PAYPAL
Supply Ability :
Ten thousand square meters per month
Delivery Time :
5~8 days
Packaging Details :
Vacuum packing, high quality carton
Base Material: :
FR4 ,PI
layer count :
4
Board Thickness: :
0.2
Copper Thickness: :
1oz
solder Color :
yellow
surface Finishing: :
HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver
Min. Hole Size :
3mil
Service :
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey service,PCBA
Material :
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun :
1-40
Board Thickness :
0.4-4.0mm
Copper Thickness :
1-6oz
Solder Mask color :
green, yellow,white, blue,black,red
Silkscreen Color :
white black
Surface Finishing :
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Test :
100% AOI, X-ray, Flying probe test.
Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.

Our main products are PCB customization and OEM , among which PCB customization products are divided into multi-field PCB, HDI PCB, high frequency and high speed PCB, special PCB.OEM products are divided into multi-field PCBA OEM and component OEM.

Capability

　 High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness		 Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		 ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.25mm--0.60mm 　0.70mm--1.00mm

Apply

Mobile phone

The light weight and thin thickness of the flexible circuit board are emphasized. Can effectively save the product volume, easily connect the battery, microphone, and button into one.

Computer and LCD screen

Use flexible circuit boards for integrated circuit configuration, as well as thin thickness. The digital signal is converted into a picture and presented through the LCD screen

CD Walkman

The three-dimensional assembly characteristics and thin thickness of the flexible circuit board are emphasized. Turn a huge CD into a good companion to take with you

Disk drive

Both hard disks and soft disks rely on the high softness of FPC and the ultra-thin thickness of 0.1mm to complete fast reading data. Whether it's a PC or a NOTEBOOK.

Latest use

HDD (hard disk drive) mount circuit (Su print ensi. n cireuit) and xe packaging board and other components
