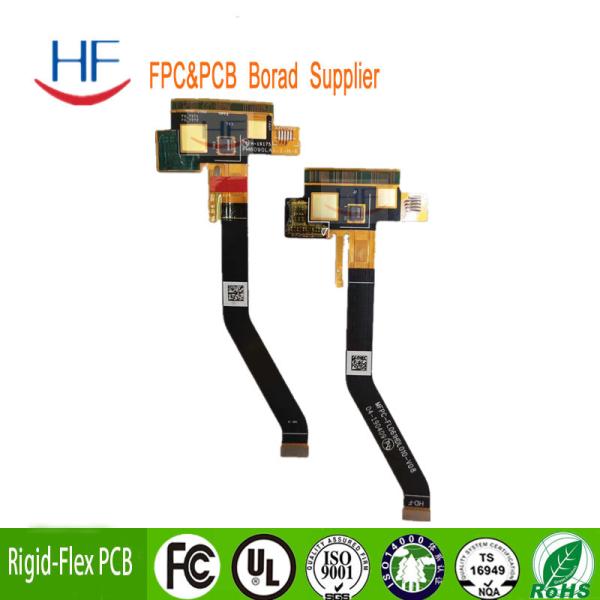

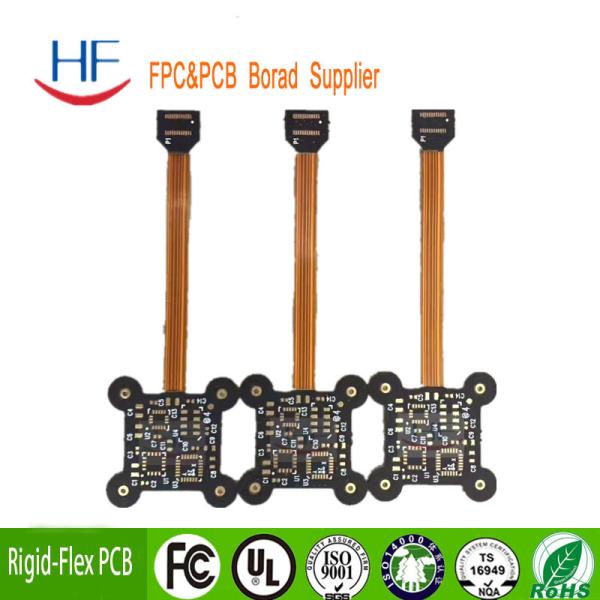

Printed Rigid Flexible PCB Circuit Board Multilayer Non Halogen 0.15mm
Printed Rigid Flexible PCB Circuit Board Multilayer Non Halogen 0.15mm
Printed Rigid Flexible PCB Circuit Board Multilayer Non Halogen 0.15mm
Printed Rigid Flexible PCB Circuit Board Multilayer Non Halogen 0.15mm
Specifications
Brand Name :
HF
Model Number :
Rigid Flex PCB
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Supply Ability :
1000/㎡/day
Packaging Details :
box
Base Material :
FR4, High TG FR4, etc
Pcb Layers :
1-12
Thickness :
0.2-3.2mm
Copper Thickness :
0.5-3oz
Function Test :
100% Functional test
Layers :
Custom
Pcb Standard :
IPC-A-610 D/IPC-III Standard
Silkscreen Color :
White, Black, Yellow
Solder Mask :
Green, Yellow, Blue, Black, White...
Type :
Electronic Board,Customizable
Payment Terms :
L/C, T/T,PAYPAL
Delivery Time :
5~8 days
Material :
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun :
1-40
Board Thickness :
0.4-4.0mm
Solder Mask color :
green, yellow,white, blue,black,red
Surface Finishing :
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Service :
OEM/ODM/PCB/Components Sourcing/Assembly/Programming/Testing...One-stop Turnkey Service.
Test :
100% AOI, X-ray, Flying probe test.
Description

Capability

　High precision prototypePCB bulk production
Max Layers1-28 layers1-14 layers
MIN Line width(mil)3mil4mil
MIN Line space(mil)3mil4mil
Min via (mechanical drilling)Board thickness≤1.2mm0.15mm0.2mm
Board thickness≤2.5mm0.2mm0.3mm
Board thickness＞2.5mmAspect Ration≤13:1Aspect Ration≤13:1
Aspect RationAspect Ration≤13:1Aspect Ration≤13:1
Board thicknessMAX8mm7mm
MIN2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size610*1200mm610*1200mm
Max copper thickness0.5-6oz0.5-6oz
Immersion Gold/
Gold Plated Thickness		Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		　
Hole copper thick25um 1mil25um 1mil
ToleranceBoard thicknessBoard thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance±10%±10%
MIN Solder mask bridge　0.08mm　0.10mm
Plugging Vias capability　0.25mm--0.60mm　0.70mm--1.00mm
