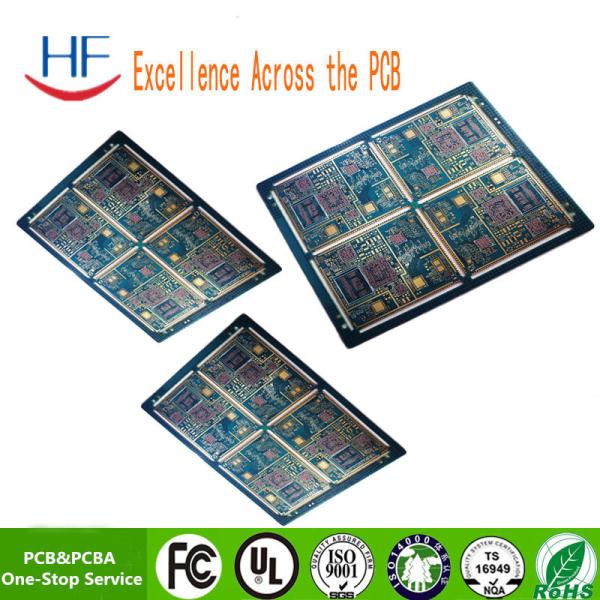

4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
4oz 1.6mm High Frequency PCB Design Board Hight TG For Microwave
Specifications
Brand Name :
HF
Model Number :
Frequency PCB
Certification :
ISO CE
Place of Origin :
China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
L/C, T/T,PAYPAL
Supply Ability :
Ten thousand square meters per month
Delivery Time :
5~8 days
Packaging Details :
Vacuum packing, high quality carton
Base Material: :
FR4 ,Rogers , Aluminum ,Hight TG
Number of plies :
2-4-6-8-10-12-16-20-22-28 Layer
Board Thickness: :
0.6～1.0～1.2～1.6～2.0～2.5～3.0～3.2mm
Copper Thickness: :
1-4oz
solder Color :
green,Red,Black,Yellow,White,Blue
silk color :
white
surface Finishing: :
HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver
Min. Hole Size :
3mil
Service :
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey service,PCBA
Material :
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun :
1-40
Board Thickness :
0.4-4.0mm
Copper Thickness :
1-6oz
Solder Mask color :
green, yellow,white, blue,black,red
Silkscreen Color :
white black
Surface Finishing :
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Test :
100% AOI, X-ray, Flying probe test.
Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.

Capability

　 High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness		 Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”		 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%		 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm		 ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.25mm--0.60mm 　0.70mm--1.00mm

Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
