Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Specifications
Brand Name :
SHANGXU
Model Number :
SX-QTK171
Certification :
CE certificate
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Name :
Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Touch Screen :
IR or Capacitive Touch Screen
Printer :
80mm Thermal Printer with auto cutter
PC :
Inbuilt with 4G RAM,512G SSD
Queue System Software :
Preinstalled in Kiosk and can support for multiple language
Language :
Multiple Language supported
Description

Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display

Hardware specification

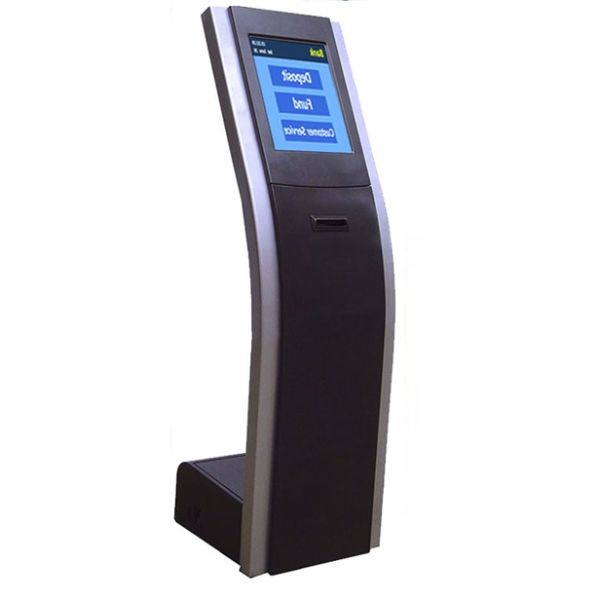

01. Token Dispenser Kiosk:

Item Description Image
Item name Token Dispenser Kiosk

Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display Kiosk

H.S. Code (for

import)

 8471609000
Brand SHANGXU
Model SX-QTK171
Specification
OS Windows – 10
Dimension(W*H*D) 420*1430*390mm
Net Weight 38 KG
Computer Industrial Computer
PC Configuration

CPU : Intel Dual Core2.41GHZ

RAM: 4GB DDR3 Memory Card

Hard Disk: 512GB

Port: 6 USB Port

Ethernet Port: 10/100 Ethernet port RJ45,Internet Access available

Screen Function

Button

Touch Button, Supported

minimum 10 options
Screen Size 17” (Diagonal)
Receipt Printer Thermal printer with auto cutter
Cutter Margin Should be managed by printer

Enclose &

Placement

 Durable frame (Full cold steel with car paint coat) to be placed on floor stand
Language Support Multi Language

Network

Connectivity

 10/100 Ethernet ports RJ 45

Counter display

Controller

 RS 232 cable free controller
Key Board Screen Key Board
Printer Epson Industrial Thermal printer (Built in with KIOSK)
Speaker Built in with Kiosk

02.Double Color Counter LED Display (Dot-matrix LED display for queue system)

Item Description Image
Item name Counter LED (Dot-matrix LED display for queue system)

Token Ticket Dispenser Kiosk Queuing Management System with Counter LED Display
Purpose

Counter number and Token

number display

H.S. Code (for

import)

 8471609000
Brand SHANGXU
Specification

Control System: Hi-tech LED Display Controller

Dot size: Ø3.75 mm

Dot Pitch: 4.75 mm

Dot Column: 64 Nos

Dot row: 16 Nos

Total no. of dots: 1024 Nos

Language: English

Dot Color to be Display: Red and Green

Viewing Side: Single Sided

Interface: Serial Communication

Message Type: Instant

Changeable by using dedicated interface software

Casing: Casing made by Black color aluminum profile,

transparent acrylic sheet and ebonite back.

Power supply: 220VAC 50 Hz.
