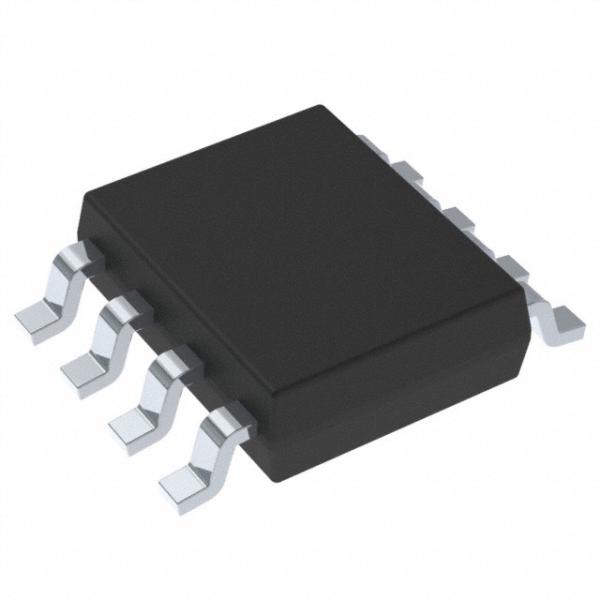

TPS5430DDAR DC DC Switching Regulators IC Buck Adjustable 3A 8SOPWR
TPS5430DDAR DC DC Switching Regulators IC Buck Adjustable 3A 8SOPWR
Specifications
Brand Name :
Texas Instruments
Model Number :
TPS5430DDAR
MOQ :
1
Price :
Contact sales
Payment Terms :
Contact sales
Supply Ability :
5000
Delivery Time :
Contact sales
Topology :
Buck
Output Type :
Adjustable
Operating Temperature :
-40°C ~ 125°C (TJ)
Supplier Device Package :
8-SO PowerPad
Description

TPS5430DDAR IC REG BUCK ADJUSTABLE 3A 8SOPWR

Category
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr
Texas Instruments
Series
-
Package
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
5.5V
Voltage - Input (Max)
36V
Voltage - Output (Min/Fixed)
1.221V
Voltage - Output (Max)
32.04V
Current - Output
3A
Frequency - Switching
500kHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SO PowerPad
Base Product Number
TPS5430

Features:

The TPS543x is a high-output-current PWM converter that integrates a low-resistance, high-side N-channel MOSFET. Included on the substrate with the listed features are a high-performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 5.5 V; an internally set slow-start circuit to limit inrush currents; and a voltage feed-forward circuit to improve the transient response. Using the ENA pin, shutdown supply current is reduced to 18 µA typically. Other features include an active-high enable, overcurrent limiting, over-voltage protection and thermal shutdown. To reduce design complexity and external component count, the TPS543x feedback loop is internally compensated. The TPS5431 is intended to operate from power rails up to 23 V. The TPS5430 regulates a wide variety of power sources including 24 V bus.

The TPS543x device is available in a thermally enhanced, easy to use 8-pin SOIC PowerPAD™ package. TI provides evaluation modules and the Designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
