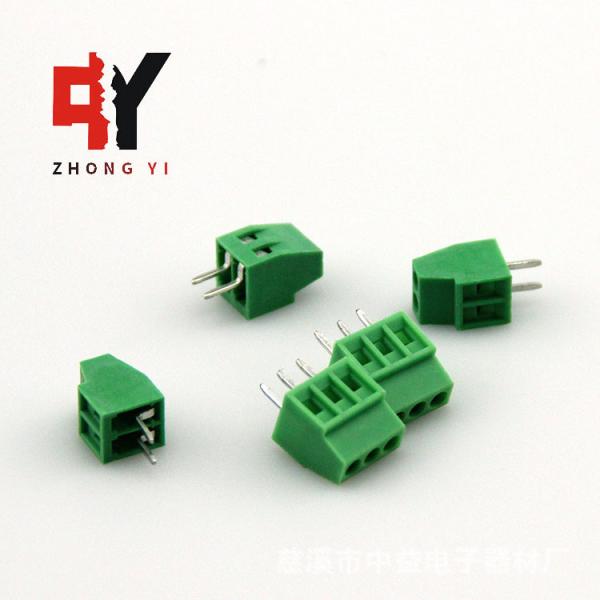

2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
2-24 Poles 150V 7A Screw Terminal Block HQ128-2.54 Mm Pitch
Specifications
Brand Name :
ZHONGYI
Model Number :
HQ128-2.54
Place of Origin :
China
MOQ :
100pcs
Price :
$0.13 100~299pcs/$0.12 300~499pcs/$0.11 ＞500pcs
Payment Terms :
T/T
Supply Ability :
10000pcs/week
Delivery Time :
1-3 work days
Packaging Details :
carton box
Pitch :
2.54mm
Poles :
2P~24P
Screws :
M1.6.Steel.Zinc plated
Wire guard :
Brass.Ni plated
Pin header :
Brass. Tin plated
Housing :
PA66.UL94V-0
Description

HQ128-2.54 mm Pitch Terminal Block 2-24 poles 150V 7A Screw Terminal Block

Features:
The screw terminal is firmly connected.
It can connect all types of wires with cross section from 0.08㎡ to 25.0㎡.
Pitch from 2.54mm to 15.0mm is available.

Electrical

Rated voltage 150V
Rated current 7A
Withstanding voltage AC1300V/1Min
Wire range 26-18AWG

Mechnical

Temp range -40℃~+105℃
Max soldering +250℃ 5 Sec
Torque 0.1Nm(0.88Lbin)
Strip length 4~5mm

Remarks:
The screw divided into slotted and phillips. If you have specific requirement, pls note or contact us.
Customized service:
LOGO, please send us your logo,we can put it on the product.
Packing, we accept customer's package,if you have specific requirement,please tell us.
ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.
