Product Description:

This Smart Plug is an intelligent remotely controlled adapter. The Smart Plug monitors power consumption as well as enables the user to control electrical appliances by switching them on or off remotely.

It also functions as a range extender, enabling users to add more devices to their Zigbee network and place them further away from the gateway.

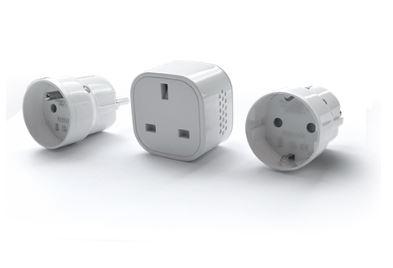

Smart Plug is available in three types:

The smallest smart plug

The Smart Plug allows the user to instantly turn on and off any device from across the world - or from the living room. The undemanding interface ensures an easy and intuitive way of adding the smart plug to your smart system.

The Smart Plug is based on Zigbee and can easily be integrated with other Zigbee products or smart control solutions. The Smart Plug is OTA upgradeable, which increases the longevity of the product.

Child-proof smart plug

The Smart Plug comes with a built-in safety mechanism that prevents accidents when children play with the device and poke an object into one of the pinholes of the smart plug. Its solid casing further ensures that children are not able to get in contact with the electrical parts of the device when playing with it.

Reliability and no loss of performance

With its current and temperature protection functionality, The Smart Plugturns off when its maximum load or maximum operating temperature is reached. When The Smart Plug is removed from the power socket, it is capable of warning the user that the connected appliance is turned off.

If the internet or Zigbee connection is cut, the smart plug can ensure that the appliance, which will be temporarily switched off, will automatically switch on again. Through a patented switching algorithm wear out of the relay is eliminated, ensuring same performance even after 100.000 switches with full load.

Technical Specifications:

General
Dimensions:
Schuko & French: Ø41 X 45 mm
British: 48 X 48 X 32 mm
Weight:
Schuko & French: 45.1 g (with packaging: 75.9 g)
British: 71.1 g (with packaging: 111 g)
Color: White
Plug types: Schuko, French, British
Power supply: 230 VAC +/-10%
Power consumption: 0.4 W
Radio
Sensitivity: -101 dBm @ 1% PER
Output power: +10 dBm
Environment
IP class: IP40
Operation temperature 0 to +50°C
Relative humidity 5% - 85%, non condensing
Specifications power meter
Voltage range: 207 to 253 VAC
Accuracy: Typ +/- 1%
Reported resolution: 1W
Specifications remote control
Max. switch voltage: 250 VAC
Max. load: 16 A
Max. continuous load: 10 A
Overload and over temperature protection
Communication
Wireless protocol
Zigbee 3.0
Zigbee router
Certifications
Conforming to CE, UKCA, RED, Low Voltage, and RoHS directives
Zigbee Home Automation 3.0 certified

Applications:

Application Areas:

Home Automation: Smart plugs are commonly used in home automation systems to control appliances remotely, schedule their operation, and monitor energy usage.

Energy Management: In both residential and commercial settings, smart plugs help in monitoring and optimizing energy consumption by turning off devices when not in use.

Security: Smart plugs can be integrated into home security systems to create the illusion of occupancy by turning lights on and off while homeowners are away.

Voice Control: Smart plugs are often compatible with voice assistants like Amazon Alexa and Google Assistant, allowing users to control devices with simple voice commands.

IoT Integration: Smart plugs can be part of a larger IoT ecosystem, enabling them to interact with other smart devices and create automated routines.

Benefits:

Convenience: Users can remotely control appliances plugged into smart plugs using their smartphones, providing convenience and flexibility in managing devices.

Energy Savings: By scheduling the operation of devices and turning them off when not needed, smart plugs help in reducing energy consumption and lowering utility bills.

Safety: Smart plugs can prevent electrical hazards by cutting off power to devices in case of overheating or other anomalies.

Monitoring: Smart plugs offer insights into energy usage patterns, allowing users to identify power-hungry devices and optimize their usage for efficiency.

Integration: Smart plugs can be integrated with smart home systems, enabling seamless automation and control of multiple devices from a centralized platform.

Smart plugs are versatile devices that provide users with enhanced control over their appliances, promote energy efficiency, and contribute to the overall convenience and safety of the connected environment.
