Specifications
Brand Name :
Jiaxuntong
Model Number :
BDS707-A
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union
Supply Ability :
800 units per month
Delivery Time :
10-15 work days after payment
Packaging Details :
wooden case
Power consumtion :
30W
Output voltage :
DC24V
Housing material :
304SUS
Lane width :
550mm
IR sensor :
4 pairs
Size :
1400*180*955mm
Description

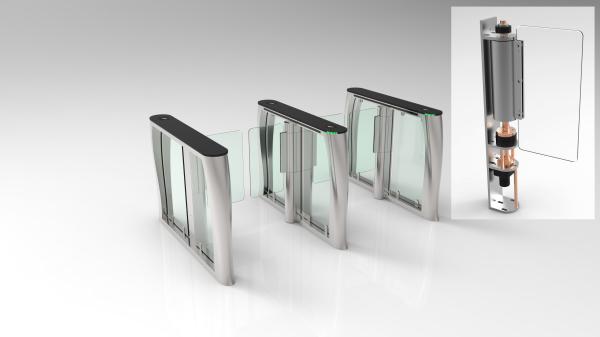

Glass high speed gate turnstile with 4 pairs IR sensor for airport
Details:

1. Item: Automatic Speed gate
2. Power consumption: 50W
3. Housing Size: 1400x180x955mm
4. Housing material:1.5--2mm, #304 Stainless Steel, Matt finish
5. Channel width:550--600mm
6. Arm length: 500mm
7. Arm turning angle: 120°
8. Pass speed: 25 persons/min.
9. Power supply: 220Vac 50Hz or 110Vac 60Hz
10. Input signal: optional DC12V level signal or DC12V pulse signal
11. Communication interface: RS485 or TCP/IP
12 Arm drop while power off: Yes
13. Working temperature: -30°C~+70°C
14. Working environments: Indoor, outdoor
15. Relative humidity: ≤95% coagulation free
16. MCBF: 3,000,000 cycles
17. Warranty: 1 year
18. Outside packing Plywood box: 1450x290x1100mm
19. Pieces per box :1 pcs / box
20. Gross weight: 110KG



Package Item:

ItemNameQtyUnitRemark
1Housing1PcNecessary
2Wing1PcNecessary
3Mechanism1PcNecessary
4Control board1PcNecessary
5Power supply and cables1KitNecessary
6Air switch1PcNecessary
7Card reader and its cables2KitOptional
8Counter and its cable2KitOptional
9Top led light and its cable1KitOptional
10Access control system1KitOptional
11Mounting boltsUnspecifiedPcNecessary


Feature:

  1. Provide normally open / normally close to satisfy management request.

  2. Compatible with RF card readers, bar code readers, biometric readers, push button.

  3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.

  4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.

  5. Automatically reset : lock automatically while the pedestrian not pass in the pre-set time after the flap opened. The time is adjustable.

  6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer

  7. (Optional) Support gate open while power failure and recover N/C mode after power on.

  8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)

  9. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.

  10. One direction or bi-direction is optional.

Glass High Speed Gate Turnstile 4 Pairs IR Sensor 304SUS Housing For Airport

FAQ:

1. Can we use our access control system?

  Yes, equipped with international interface, can be easily integrated with other recognition devices.

  2. If we buy your products, can you train us?

  Yes, we can provide training free of charge. You can send your engineers to us, we will train them in our factory.

  3. Can you make it bi-directional? Any extra cost?

  One direction or bi-direction is available, no extra cost.

  4. Can it use for outdoor?

  Yes, can be used for outdoor and indoor.

  5. What's you warranty?

  We provide one year warranty. After that, we can supply chargeable spare parts.
