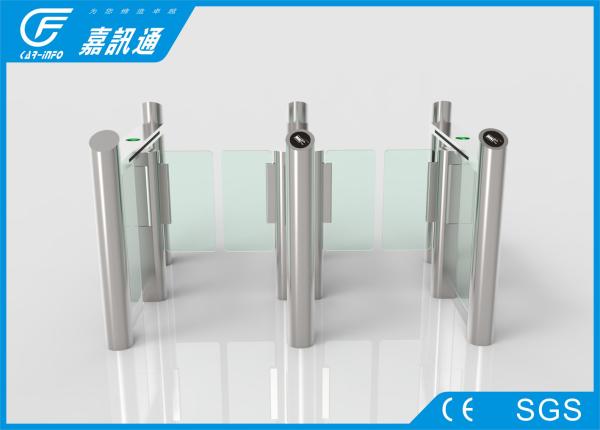

Intelligent IR Sensor Speed Gate Turnstile 40persons / Min Anti - Trap 130W / 24V
Intelligent IR Sensor Speed Gate Turnstile 40persons / Min Anti - Trap 130W / 24V
Specifications
Brand Name :
Jiaxuntong
Model Number :
BD- 805PG
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
500set/ month
Packaging Details :
wooden package
Connection: :
TCP/IP standard or RS485
Extended function :
sound light ,alarm
Passing Speed :
40persons/min
Driving Motor :
Brcush DC motor
Direction :
one-way, bi-direction adjustable
Materials :
304# stainless steel
Description

Intelligent IR Sensor anti-trap high Speed Swing Gate Suitable In Office Builing for control the vistor

Technical Parameters:

1 Power AC220V±10% 50HZ
2 Operating Temperature -45°C-60°C
3 Relative Humidity <95%, No Densation
4 Access Width 550 mm
5 Passing Speed 50 persons/min. (IC Card)
6 Motor 130W/24V
7 Motor Operation Speed 160R/Min.
8 Communication Distance ≤1200M
9 Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
10 Communication Connection RS485 Communication Module Standard
11 Material Stainless Steel 304, thickness is no less than 1.5mm
12 Running Life 5-8 Million (Continuous Opening and Closing Operation)
13 Protect Level IP 54
14 Colour

SSB (US32D)-Stainless Steel Brushed/Power Coating (Optional),

or other Colour you like
15 Operation Place

Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall,

Residence Area, Enterprise Entrance and Exit Attendance, Gateway Guard,

Charge Management, Special Access Control

Functions & Features:

  1. The metal house is shaped by high quality 304# stainless steel, with the trait of firmness, antirust, daintiness, safety, easy cleaning and maintenance.
  2. Machinery and electrical integration design
  3. Interface for variety of card reader: such as: IC / ID card readers, bar codes, fingerprints, etc.
  4. Auto reset function. If the passenger does not pass the way in the valid time, the system will lock up again. The valid passing time is 5 seconds.
  5. Arms automatically open when power off, and auto-close when power on
  6. Fault self-checking function, easy for using and maintenance
  7. Through the interior buttons of the main control panel to set the operational status of equipment
  8. Infrared anti-clamping function, by entering obstacles while return ,arm will automatically reset or stop working within the required time with little force
  9. Sound & light alarm function, automatic alarm in case of illegal entering

Intelligent IR Sensor Speed Gate Turnstile 40persons / Min Anti - Trap 130W / 24V
