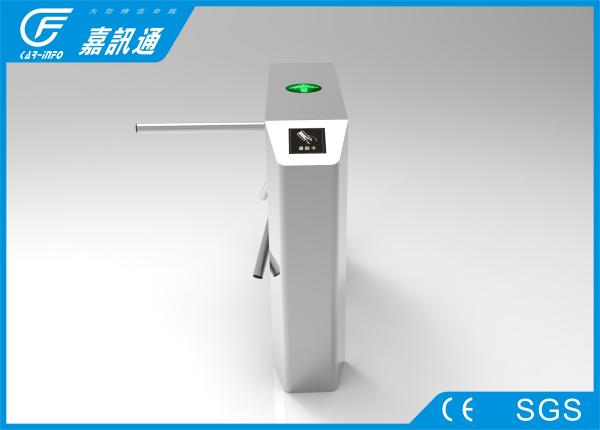

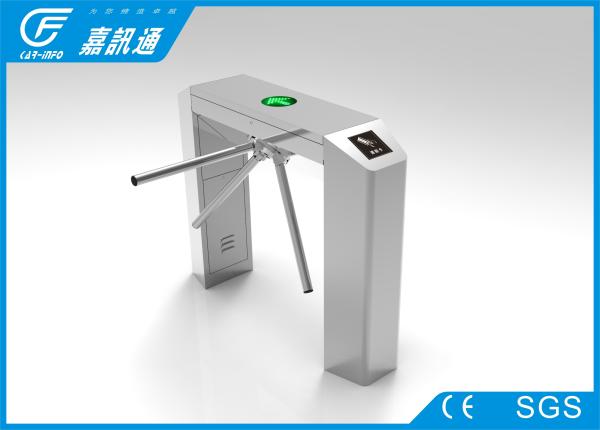

CF238FLG-DX bridge type tripod turnstile for stadium entrance , 220V / 110V , stainless steel
CF238FLG-DX bridge type tripod turnstile for stadium entrance , 220V / 110V , stainless steel
CF238FLG-DX bridge type tripod turnstile for stadium entrance , 220V / 110V , stainless steel
CF238FLG-DX bridge type tripod turnstile for stadium entrance , 220V / 110V , stainless steel
Specifications
Brand Name :
Jiaxuntong
Model Number :
CF238FLG-DX
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 units per month
Delivery Time :
10-15 days after payment
Packaging Details :
wooden case
Material :
stainless steel
name :
tripod turnstile CF238FLG-DX
Product size :
1200*280*980mm
frequency :
50-60HZ
Channel width :
550-570mm
working environment :
-40-60 ℃
Application :
stadium
Noise :
less than 50db
Description

CF238FLG-DX bridge type tripod turnstile for stadium entrance , 220V / 110V , stainless steel

Technical parameters:

Type bridge tripod turnstile
Model CF238FLG-DX
Housing material stainless steel
Life span 3000000 cycles
Dimension 1200*280*980mm
Net weight 80 kg
Channel width 550-570mm
Opening time 0.6s
Input voltage 220V
Drive mode motor drive
Drive board voltage DC24V
Communication RS485 or TCP/IP
Working environment -20~60 ºC
Humidity <=90% coagulation free
Noise <=50 DB
Frequency 50-60 HZ
Power 50W
Warranty 1year

Feature:

1. Rainproof housing, #304 stainless steel

2. Innovative and unique mounting surface ensures simple and convenient installation for system integrators.

3. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)

4. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically

5. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

Detail Image:

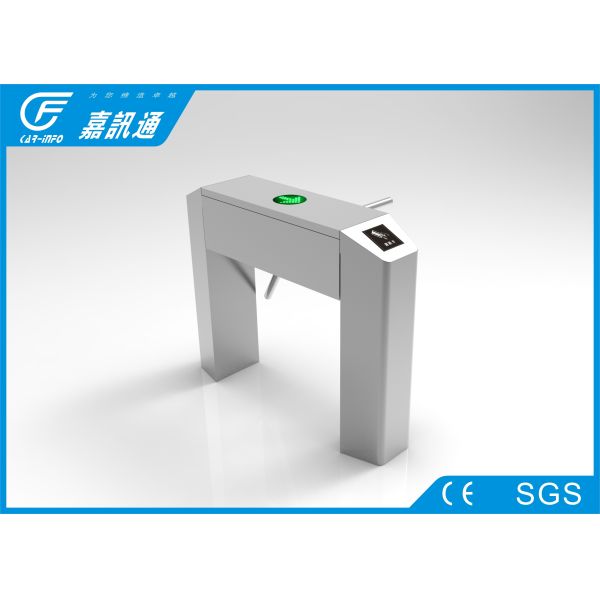

CF238FLG-DX bridge type tripod turnstile for stadium entrance , 220V / 110V , stainless steel
