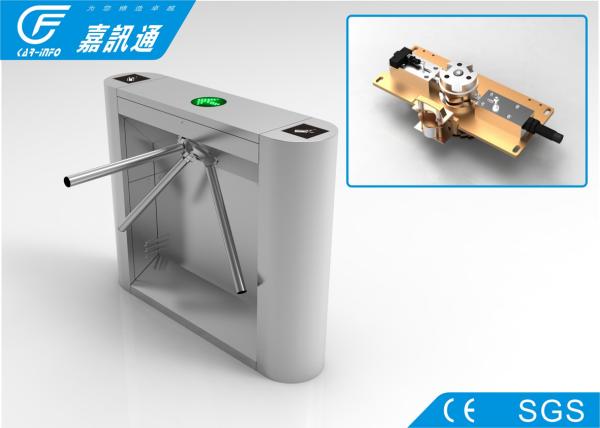

CF1200-HD tripod gate turnstile for stadium entrance , stainless steel , rfid control system
CF1200-HD tripod gate turnstile for stadium entrance , stainless steel , rfid control system
CF1200-HD tripod gate turnstile for stadium entrance , stainless steel , rfid control system
CF1200-HD tripod gate turnstile for stadium entrance , stainless steel , rfid control system
Specifications
Brand Name :
Jiaxuntong
Model Number :
CF1200-HD
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1 unit
Payment Terms :
T/T, Western Union
Supply Ability :
800 unit per month
Delivery Time :
10-15 work days
Packaging Details :
wooden case
Material :
stainless steel
name :
semi auto CF1200-HD tripod turnstile
Net weight :
85kg
reader :
IC card
Service life :
3000000 cycles
application :
apartment
Description

CF1200-HD tripod gate turnstile for stadium entrance , stainless steel , rfid control system

Description:

Tripod turnstile is an electro mechanical turnstile.Full-auto type unit with solenoid locking mechanism with electric motor.Semi automatic design without motor allows it to be more economical.Sturdy rock solid internal mechanical parts design maximize it's durability for industrial usage.

Feature:

1. Tripod turnstiles are still most probably the most common type of turnstile and the type that most people associate with because they are found in so many applications including: trainstation, subsway, libraries, gyms, leisure facilities, shops, public buildings etc.

2. Constituted by a pedestal or cabinet that supports a tripod-shaped arms and performs controlling step by rotation of a tripod-shaped arm which is pushed by the user and with each turn of 120 degrees allows the passage of a person being always one of the arms in the closed position.

3. Availability of motorized mechanism with automatic rotation. Best suited for indoor or outdoor protection areas under surveillance. There are models that can incorporate a warning system to detect fraudulent way.

4. Control one or both directions of passage (Uni or bidirectional), commanded by any card reader, biometric or fingerprint.

Parameter:

Type tripod turnstile
Model CF1200-HD
Opening time 0.6s
Input voltage 220V
Drive mode motor drive
Drive board voltage DC24V
Communication RS485 or TCP/IP
Working environment -20~60 ºC
Humidity <=90% coagulation free
Noise <=50 DB
Frequency 50-60 HZ
Power 50W
Warranty 1year

Relate Product:

1. Full height turnstile

2. Flap barrier gate

3. High speed gate

4. Swing barrier gate

CF1200-HD tripod gate turnstile for stadium entrance , stainless steel , rfid control system
