Affordable solution swing barrier for low traffic and light duty site

Swing barrier description:

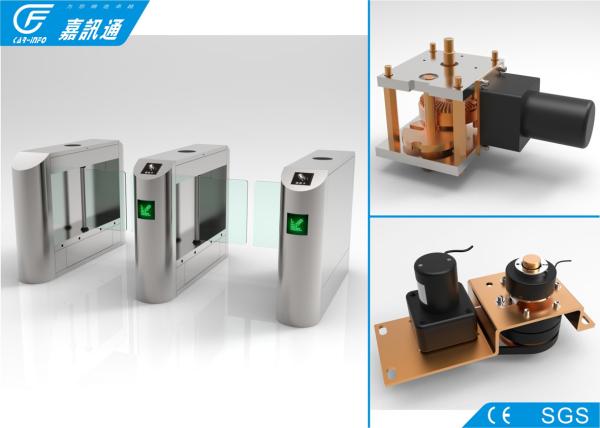

CF series swing barrier compact size and turbular shape allow it to easily fit into places with very limited space. Access control and time attendance reader can be integrated into top cover.

CF series swing barrier design is simplified to achieve optimum function at more affordable cost. Control system mechanism is modular for easy maintenance servicing and part replacement.

Swing barrier specification:

Swing barrier features:

1. RELIABILITY
Patented compact mechanism ensures the long life of the lubricating oil inside and high quality electrical

components.

2. WIDEST OPENING

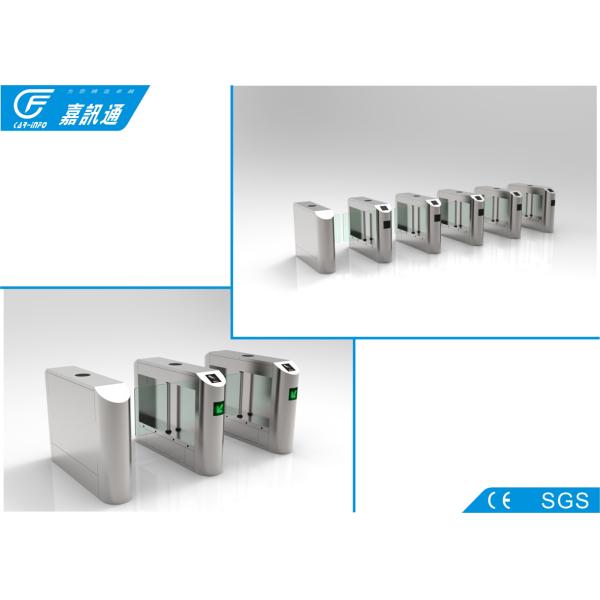

Compared to tripod turnstile and flap barrier, swing barrier allow widest opening clearance.2 unit swing barrier can be installed on same lane to give maximum clearance 910 mm (inclusive 10 mm clearance).

3. CUSTOMIZE OPENING
Swing barrier allow customizable opening. The wing can be cut short according to clearance available at site to achieve perfect fitting.Control system will auto synchronize both swing barrier installed in the same lane. Both swing barrier will open and close at the same time.

4. EASY INTEGRATION
A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.

5. DOUBLE SAFETY
Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing. This prevent the closing gate to hit user that is still in the lane passage.

6. EMERGENCY RECOVERY
During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency. When the power resume, swing barrier will automatically close back.

Our advantages

Swing barrier functions:

1. Control signal

From the remote control panel or a wireless remote control(in the pulse control mode).
From access control system via a controller (in either pulse or potential control mode).
The turnstile is a normally closed unit(N/C),it is remains unlocked until it receives a valid authorization or is unlocked with a mechanical release key.
If integrated into a fire alarm system,the turnstile can also be automatically unlocked by fire alarm signal.

2. Direction indicator

Green Arrow indicates that the turnstile is unlock to permit a passage and shows the direction of authorized passage;
Red Cross indicates that passage is not allowed and shows that the turnstile remains in locked status.

3. Operation modes

Single passage in the set direction(the turnstile is open for one passage in the permitted direction and closed in the opposite direction).
Bi-directional single passage(the turnstile is open for one passage in each direction).
Free passage in the set direction(the turnstile is open for multiple passages in the permitted direction and closed in the opposite direction).
Free passage in the one direction,single passage in the opposite direction(the turnstile is open for multiple passages in the permitted direction and one passage in the opposite direction).
Always free(the turnstile is open for entry and exit).
Always locked(the turnstile is closed for entry and exit).
