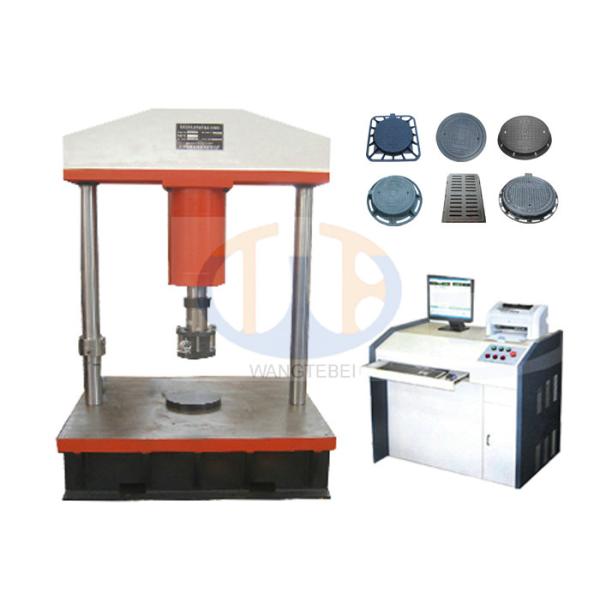

Well Lid Compression Testing Machine
Well Lid Compression Testing Machine
Well Lid Compression Testing Machine
Well Lid Compression Testing Machine
Specifications
Brand Name :
wangtebei
Model Number :
YAW
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
15 working days
Packaging Details :
export package
Max. test force :
600KN, 1000KN, 1500KN
Measuring range :
2%-100%FS
Precision :
1%
Compression space :
0-350mm
Size of working table :
1200X1400mm
Diameter of upper pressure head :
250mm
Stroke of piston :
150mm
Deformation measuring range :
0-10mm
Deformation resolution :
0.01mm
Loading speed :
0-40kN/s
Weight of main machine :
2800kg
Description

1. Product name:computerized manhole cover compression testing machine

2. Introduction of testing machine

The manhole cover compression testing machine can be used to test the compression properties of cast iron manhole cover, composite material manhole cover, and steel reinforced concrete.

The manhole cover compression testing machine adopts computerizing, high precision electro-hydraulic servo valve to drive precise hydraulic cylinder and then realize the auto control to the test force, displacement, and deformation, etc.

3. Test standard
BS EN 124 Gully tops and manhole tops for vehicular and pedestrian areas-Design requirements, type testing, marking, quality control

4. Main technical parameters of testing machine

1 Max. test force 600kN 1000kN 1500kN
2 Measuring range 2%-100%FS 2%-100%FS 2%-100%FS
3 Precision 1% 1% 1%
4 Compression space 0-350mm 0-350mm 0-350mm
5 Size of working table 1200X1400mm 1200X1400mm 1400X1500mm
6 Diameter of upper pressure head 250mm 250mm 250mm
7 Stroke of piston 150mm 150mm 150mm
8 Deformation measuring range 0-10mm 0-10mm 0-10mm
9 Deformation resolution 0.01mm 0.01mm 0.01mm
10 Loading speed 0-40kN/s 0-40kN/s 0-40kN/s
11 Dimension of main machine(cm) 150X140X200 150X140X200 160X150X205
12 Dimension of control cabinet(cm) 110X70X94mm 110X70X94mm 110X70X94mm
13 voltage 380V, 50Hz, 1.5kW 380V, 50Hz, 1.5kW 380V, 50Hz, 1.5kW
14 Weight of main machine 2800kg 2800kg 3000kg
