Computerized Compression Testing Machine
Computerized Compression Testing Machine
Computerized Compression Testing Machine
Computerized Compression Testing Machine
Specifications
Brand Name :
wangtebei
Model Number :
WTY-W300
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
20 sets per month
Delivery Time :
5-8 working days
Packaging Details :
seaworthy wooden package
Max. load for compression :
300KN
Max. load for bending test :
10KN
Measuring range for compression :
12-300kN
Measuring range For bending :
1-10kN
Precision :
±1%
Speed range For compression :
0 -4.8kN/S
Speed range for bending :
0.01-0.2kN/S
Control mode :
Computer control
Max. compression space :
220mm
Diameter of upper and lower compression platen :
150mm
test method :
single test or group test(6 single test in continuously)
Description

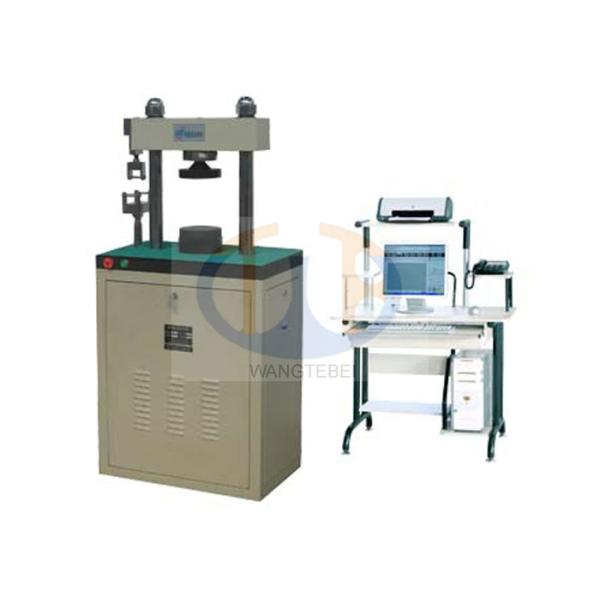

WTY-W300 Computerized Cement Compression and Bending Testing Machine

1. introductions

This testing machine adopts double space, frame structure. On the left side of the machine is for bending test of cement. Advanced closed loop control software is equipped. Through the software, parameter setting, test process controlling, data collecting, data analysis and displaying can be realized. It can do both single test and group test. Various test curves can be displayed on the computer as well. All the test results can be saved and printed quickly and easily.

2. technical specs.

Model WTY-W300
Max. load(kN)

Max. load for compression:300KN

Max. load for bending test:10KN
Measuring range and precision

for compression:12-300kN；

For bending:1-10kN

Precision±1%
Speed range

For compression:0 -4.8kN/S

for bending:0.01-0.2kN/S
Control mode Computer control
Max. compression space 220mm
Diameter of upper and lower compression platen 150mm
test method single test or group test(6 single test in continuously)
Dimension(Length×Depth×Height) 930×530×1500mm
Weight About 600kg
Voltage and power 220V;1.0kW
