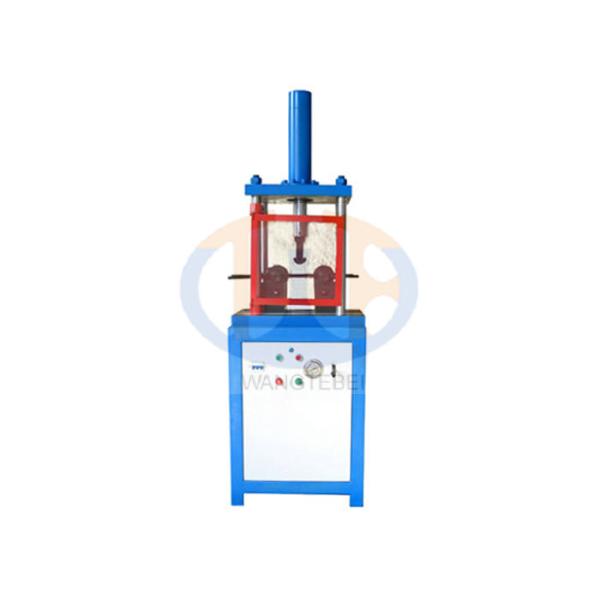

Automatic Calculation Flexural Testing Machine For Concrete , Tube Testing Equipment HWQ - 40E
Automatic Calculation Flexural Testing Machine For Concrete , Tube Testing Equipment HWQ - 40E
Automatic Calculation Flexural Testing Machine For Concrete , Tube Testing Equipment HWQ - 40E
Automatic Calculation Flexural Testing Machine For Concrete , Tube Testing Equipment HWQ - 40E
Specifications
Brand Name :
wangtebei
Model Number :
HWQ-40
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
15 working days
Packaging Details :
export package
Max. Bending diameter of steel bar :
Sample diameter less than 40mm
Working pressure :
28MPa
Loading speed :
1-160mm/min
Span between rolls :
0-500mm
Size of support roll :
ø100*100mm
bending test space :
500mm
Description

1. Introduction

Used in 180 degrees bending test and check whether there is crack after test in bending plastic deformation for plain round bar, ribbed bar, straight steel bar, steel tube, etc.

Used for bending test of steel bar for HPB235,HPB300,HRB335/HRBF335,HRB400/HRBF400,HRB500/HRBF500,CRB550,CTB550/CTB650 (Diameter less then 40mm).

2. Test Standards

  • GB/T232 Metallic materials-Bend test；(ISO 7348:2005.MOD)；
  • GB1499.1 Steel for the reinforcement of concrete - Part 1: Hot rolled plain bars(ISO6935-1:NEQ)；
  • GB1499.2 Steel for the reinforcement of concrete-Part2: Hot rolled ribbed bars(ISO6935-2:NEQ)；
  • GB1499.3 Steel for the reinforcement of concrete-Part3: Welded fabric(ISO6935-3:NEQ)；
  • GB13788 Cold rolled ribbed steel wires and bars；
  • JG190 Cold-rolled and twisted bars；
  • JGJ/T27-2014 Standard for test methods of welded joint of reinforcing steel bars；

3. Technical Specification

Max. Bending diameter of steel bar Sample diameter less than 40mm
Working pressure 28MPa
Loading speed 1-160mm/min
Span between rolls 0-500mm
Size of support roll ø100*100mm
bending test space 500mm
piston stroke 350mm
working power 3 phase, 380VAC, 50Hz
power 1.1kW
dimension of loading frame 800*630*1900mm
