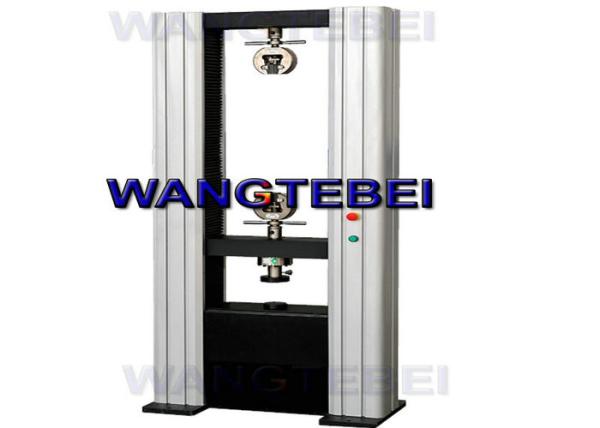

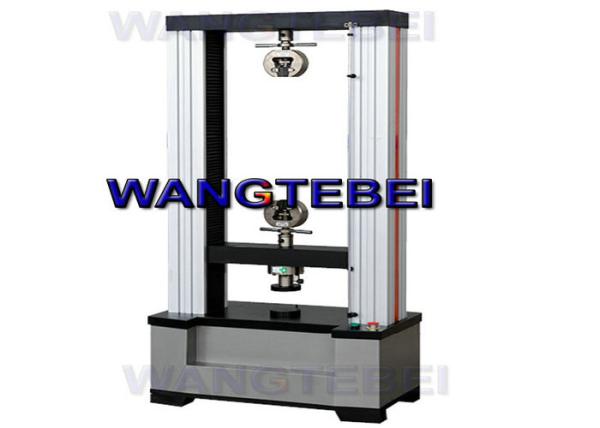

High Grade Tension Testing Machine Ultimate Tensile Auto Stop At Break
High Grade Tension Testing Machine Ultimate Tensile Auto Stop At Break
High Grade Tension Testing Machine Ultimate Tensile Auto Stop At Break
High Grade Tension Testing Machine Ultimate Tensile Auto Stop At Break
High Grade Tension Testing Machine Ultimate Tensile Auto Stop At Break
High Grade Tension Testing Machine Ultimate Tensile Auto Stop At Break
Specifications
Brand Name :
wangtebei
Model Number :
WTD
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
export package
Model :
WTD-5/10/20/50/100/200/500/600
Force resolution :
1/400000
Deformation measuring range :
2%~100%FS
Relative error of deformation value :
+/-1%(+/-0.5%)
Deformation resolution :
1/400000
Description

1. introduction

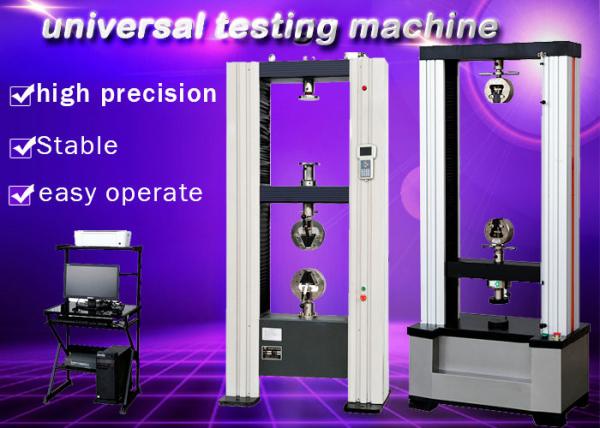

The universal testing machine (UTM), also known as a universal tester, materials testing machine, materials test frame or tensometer, is used to test the tensile strength and compressive strength of materials. It can perform many standard tensile and compression tests on materials, components and structures, in other words, that it is versatile.

2. specification

Model WTD-5/10/20/50 WTD-100 WTD-200/300 WTD-500/600
Max. capacity(kN) 5/10/20/50 100 200/300 500/600
Measuring range 1%~100%FS(0.4%-100%FS)
Grade Grade 1(Grade 0.5)
Force resolution 1/400000
Deformation measuring range 2%~100%FS
Relative error of deformation value +/-1%(+/-0.5%)
Deformation resolution 1/400000
Force speed 0.01-50 kN/s
Deformation speed 0.01-30mm/min
Displacement speed 0.01-500mm/min (can be 1000mm/min) 0.01-300mm/min 0.01-250mm/min
Tensile fixture for flat specimen 0-7mm, 7-14mm according to sample size
tensile fixutre for round specimen 4-9mm, 9-14mm,14-21mm according to sample size
Extensometer According to test material or client’s requirement
High and low temperature test According to relative test method or client’s requirement
Max. stroke of crossbeam 1090mm 1070mm 1140mm 1200mm
Effective tensile space 800mm 700mm 600mm 600mm
Distance between columns 430mm 550mm 600mm 625mm
Power 220V,1.0kw 220V,2kw 220V,3kw 380V,4kw
Dim. Of loading frame(cm) 79x43x186 92x50x198 110x60x241 130x87x250
Weight 400kg 700kg 1150/1250kg 2500kg
3. parameters can be measured
For tensile test, the universal testing machine can measure following parameters according to different materials (not limit to the following)
Elongation Extension Stress Percentage elongation
Tensile strength Yield strength Maximum tensile force Upper yield strength
Lower yield strength Permanent set strength Modulus of elasticity Extensometer gauge length
Percentage yield point extension Percentage extension/ strain Percentage permanent extension Percentage permanent elongation
Percentage elongation after fracture Percentage total extension at fracture Proof strength/ plastic extension Proof strength, total extension
Percentage plastic extension at maximum force Percentage total extension at maximum force
For compression test, the UTM can measure following (not limit to the following)
Compression stress proof strength non-proportional compression proof strength
total compression compressive yield strength upper compressive yield strength lower compressive yield strength
compressive strength compressive modulus of elasticity

The universal testing machine can also make bending and flexural test, shear test, peel test, high and low temperature test, assurance loading test, wedge test, etc. if equipped with relative test fixtures.

package and shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
