Precise Tensile Strength Measuring Instrument Geosynthetic Tensile Testing Machine

Specifications

Brand Name :

wangtebei

Model Number :

WDW

Place of Origin :

China

MOQ :

1 set

Price :

negotiation

Payment Terms :

T/T

Supply Ability :

20 set per month

Delivery Time :

10 working days

Packaging Details :

export package

test sampe type :

woven geotextile, nonwoven geotextiles, geocomposites, knitted geotextiles, felts,geogrid

test sample size :

200mmx 100mm

test specimen qty :

5 pcs in both the machine direction and the cross direction

max. capacity :

5KN-600KN

testing machine grade :

grade 1

Description

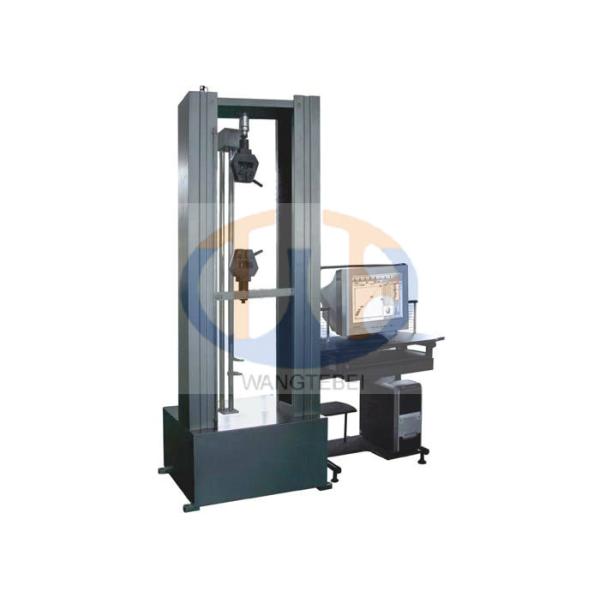

Computer control servo geosynthetic tensile testing machine geogrid tensile testing machine wire mesh tensile tester

1. introduction

This geosynthetic tensile testing machine is to measure and determine the tensile properties of geosynthetics, including woven geotextile, nonwoven geotextiles, geocomposites, knitted geotextiles, felts and geogrids and similar open-structrue geotextiles and geosynthetics barriers.ong

2. test specimen

The test specimen is 200mm wide and 100mm, and five test specimen should be cut in both the machine direction and the cross direction.

3. specification of geosynthetic tensile testing machine

Model	WDW-5/10/20/50	WDW-100	WDW-200/300	WDW-500/600
Max. capacity(kN)	5/10/20/50	100	200/300	500/600
Measuring range	1%~100%FS(0.4%-100%FS)
Grade	Grade 1(Grade 0.5)
Force resolution	1/400000
Deformation measuring range	2%~100%FS
Relative error of deformation value	+/-1%(+/-0.5%
Deformation resolution	1/4000000
Force speed	0.01-50 kN/s
Deformation speed	0.01-30mm/min
Displacement speed	0.01-500mm/min (can be 1000mm/min)		0.01-300mm/min	0.01-250mm/min
Tensile fixture for round and flat specimen	Standard one set tensile fixture for round specimen, one set tensile fixture for round specimen, one set of compression platen, other test fixture can be equipped according to client’s requirement or relative test method
Extensometer	According to test materials or client’s requirement
High and low temperature test	According to relative test method or client’s requirement
Max. stroke of crossbeam	1090mm	1070mm	1140mm	1200mm
Effective tensile space (equip with metal tensile fixture)	800mm	700mm	600mm	600mm
Distance between columns	430mm	550mm	600mm	625mm
Power	220V,1.0kw	220V,2kw	220V,3kw	380V,4kw
Dim. Of loading frame(cm)	79x43x186	92x50x198	110x60x241	130x87x250
Weight	400kg	700kg	1150/1250kg	2500kg

4. software features

Easy to control and friendly interface

windows based interface, easy and fast to reach different functions, suitable for most of operators using habits. Integrated all common operation functions, like specimen information input, specimen choosing, curve plotting, data display, data process, data analysis, test operation etc., easy and convenient to operate.

Full digital display and computer control

Adopting remote controller, fast response and reliable to parameter gathering. Realize digital adjustment and zeroing of load, deformation and displacement as well as PID parameter adjusting.

Different control mode & speed setting
Programmable control mode

Users can program test mode according to their own requirements.

Load holding facility for a specific period:

Report is editable

5. appendix

Test grip type diagram:
