Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic
Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic
Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic
Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic
Specifications
Brand Name :
wangtebei
Model Number :
A type B type
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
5-8 working days
Packaging Details :
export package
Type A :
Diameter 29mm Height 12.5mm
Type B :
Diameter 13mm Height 6.3mm
Dimensions :
diameter 115mm high about 110mm
weight :
3.5kg
Description

deformation of compression set for rubber, vulcanized or thermoplastic

Overview

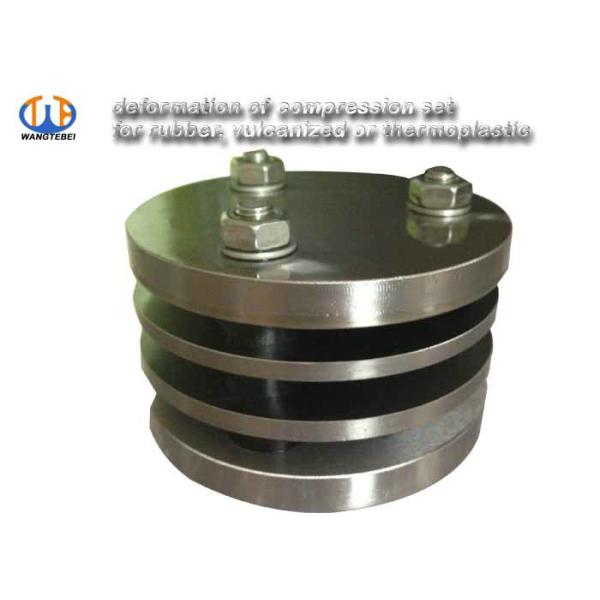

The rubber compression permanent deformation device is composed of parallel steel plate limiter and fasteners, meets the requirements of GB7759 and ISO815, and is used for vulcanized rubber. The thermoplastic rubber is tested at a certain compression rate under normal temperature, high temperature and low temperature conditions, after a certain compression time. The amount of deformation.

Features and uses
The tester consists of parallel steel plates, limiters and fasteners. It meets the requirements of GB7759, ISO815 and other related standards. It is used for vulcanized rubber, thermoplastic rubber or foam under normal temperature, high temperature and low temperature conditions, with a certain compression ratio and a certain compression time. After that, the amount of rubber deformation was measured.

Technical parameters:
1. Sample: Type A: Diameter 29mm Height 12.5mm
Type B: Diameter 13mm Height 6.3mm
2, limiter height:

Sample type A B
When the compression ratio is 25%, mm 9.3 ~ 9.4 4.7 ~ 4.8
When the compression ratio is 15%, mm 10.6 ~ 10.7 5.3 ~ 5.4
When the compression ratio is 10%, mm 11.25 ~ 11.3 5.65 ~ 5.7

3, Dimensions: diameter 115mm high about 110mm
4, weight: 3.5kg
