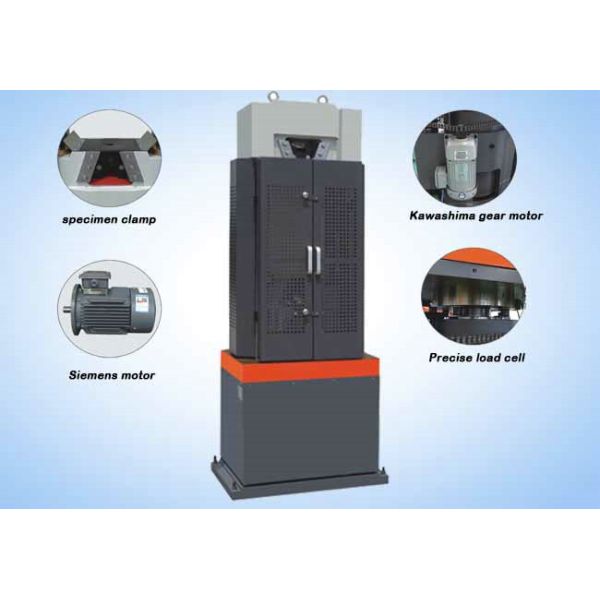

300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space
300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space
300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space
300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space
Specifications
Brand Name :
wangtebei
Model Number :
WAW-300B
Place of Origin :
China
MOQ :
1
Price :
USD8000-9000 per set FOB basis
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
5-8 working days
Packaging Details :
export wooden box
grade :
grade 1 or 0.5
force sensor :
1000KN load cell
structure :
4 columns 2 screws
control type :
computer software control
test fixture :
tension, compression and bending test fixture
Description

1.introduction

The universal testing machine (UTM), also known as a universal tester, materials testing machine, materials test frame or tensometer, is used to test the tensile strength and compressive strength of materials. It can perform many standard tensile and compression tests on materials, components and structures, in other words, that it is versatile.

300KN computerized servo hydraulic universal testing machine

300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space

300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.Standard:ASTM, ISO, DIN, GB and other international standards.

2.working condition

300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space

3.Specification

1 max. capacity 300KN
2 accuracy grade grade 1
3 force collecting method spke load cell
4 piston stroke 200mm
5 test specimen clamping mode hydraulic clamping
6 control mode computer software control
7 compression space 600mm
8 tension space 700mm
9 total power 1.5kW
10 compress plate Dia.148mm
11 clamps for round specimen Dia.10-30mm
12 clamps for flat specimen 0-10mm
13 span of bending accessory 50-300mm
14 roller diameter of bending accessory Dia.50mm
15 structure 4 columns 2 screws
16 overall dim. of loading frame 810x560x1910mm
17 weight of loading frame 1620kg
18 overall dim. of control cabinet 1010x640x840mm
19 weight of control cabinet 150kg

4.protecting functions

a) over load protecting when loading force is more than 2% to 10% of max. capacity of the machine, the machine auto stop

b) limit stroke of crossbeam: when middle crossbeam moves to the up and low limit position, the limit stroke switch will auto stop crossbeam.

c) auto stop when test specimen break.

5.software features

300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space

300KN Computerized Servo Hydraulic Universal Testing Machine 600mm Compress Space
