200 Ton Civil Engineering Testing Equipment Concrete Compressive Force Testing Machine
200 Ton Civil Engineering Testing Equipment Concrete Compressive Force Testing Machine
Specifications
Brand Name :
GTJ
Model Number :
DYE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20 per month
Delivery Time :
5-8 work days
Packaging Details :
suitable for export
max. force :
2000KN
grade :
grade 1
force sensor type :
oil pressure sensor
test parameter :
max. force,compressive strength
Motor power :
0.75KW
Weight :
900kg
Description

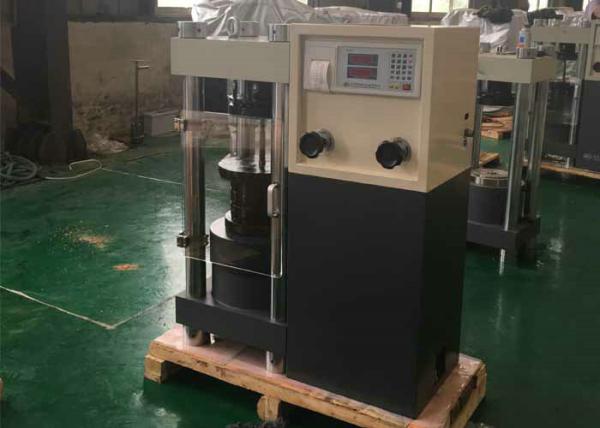

Computer control servo compression testing machine

hydraulically powered, and uses electro-hydraulic servo control technology to test the mechanical compressive properties of concrete, brick, stone and other building materials, and the computer displays the load-bearing value, the loading speed, and loading curves.

Maximum test force (KN): 2000

Test accuracy: 1%

Space adjustment method: By steel blocks

Piston stroke (mm): 80

Force Sensor Type: Oil Pressure Sensor

Maximum distance between two pressure plates (mm): 350

Upper platen size (mm): Ø225mm

Lower platen size (mm): Ø295mm

Motor power (KW): 0.75

Mainframe dimensions (mm): 450x400x1250

Machine weight (kg): 900

Control cabinet dimensions (mm): 985x600x800
