Specifications
Brand Name :
HONPHO
Model Number :
TS150C-02
Certification :
ISO9001:2015/GB/T 19001-2016
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Supply Ability :
30pcs per Month

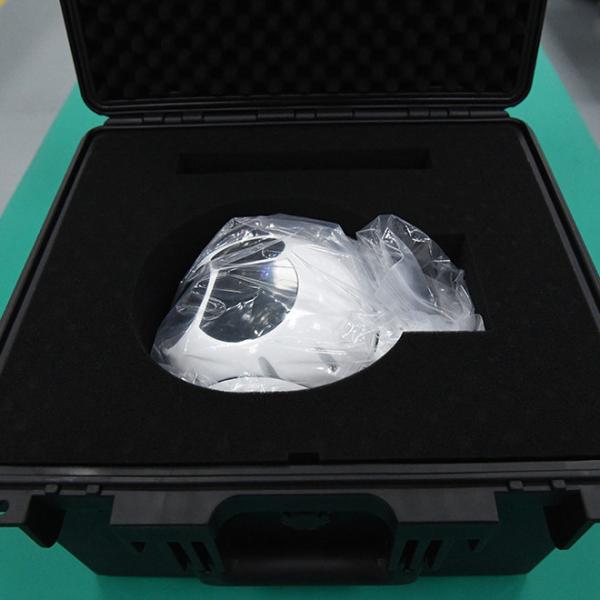

Packaging Details :
Air packing case
Product name :
Electro Optic System
Dimension :
≤Φ150mm×205mm
Weight :
≤2kg
Voltage :
12V
Power consumption :
Average:≤15W, Peak: ≤30W
Working temperature :
-20~60°
Description

24V Electro Optical Infrared Sensors System Resolution 1920x1080 Airborne UAV Drone Pod

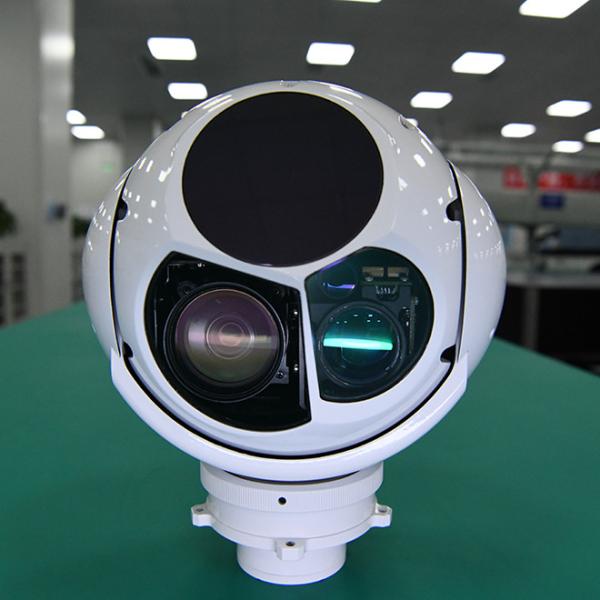

TS150C-02 is two- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and longwave infrared module (LWIR uncooled) and laser rangefinder, mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
TS150C-02 with light weight, mature and reliable technology, and can be assembled in various types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs of sea and air.

Functions

a) Provide the HD visible and long wave infrared video and image for detection area

b) High precision visual axis stabilization function
c) With the capability of detection and recognition for ground target
d) Support search, tracking, lock, guiding, etc working ways
e) With character overlay, custom and display functions;
f) With target positioning functions
g) With laser ranging function
h) With self - check and fault diagnosis function
i) IR pseudo color and temperature measurement
j) Built in image and video storage
k) Fire auto recognition and Calculation of fire area

Specifications

EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 4.3mm～129mm(30X)
FOV 63.7°～2.3°
Video output HD-SDI(1080P 30Hz)
Distance PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km
IR sensor IR Type LWIR(un-cooled)
Wavelength 8～14μm
Resolution 640x512
Pixel 12um
NETD 50mk
Focus length 50mm/F1.0
FOV 8.8º×7.0º
Distance PEOPLE:Detection 1.4km; Recognition 0.35km
VEHICLE:Detection 8.4km; Recognition 2.1km
Laser rangefinder Wavelength 1535nm
Frequency 1HZ
Ranging distance 4km
Ranging accuracy ±3
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface		 RS422 x1(TTL optional)
Video output 100mb Ethernet

Mechanical Drawing

24V Electro Optical Camera Infrared Sensors Resolution 1920x1080 Airborne UAV Drone Pod

Company Profile

Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise

24V Electro Optical Camera Infrared Sensors Resolution 1920x1080 Airborne UAV Drone Pod

Certification of HONPHO

24V Electro Optical Camera Infrared Sensors Resolution 1920x1080 Airborne UAV Drone Pod
