Aluminum Alloy Classic Foldable Electric Wheelchair Scooter With Brushless Motor
Model DYN30A ( D07 )
Description
Pingfang electric wheelchair is exquisite and exquisite, occupying only 0.14m3 after folding, which is convenient for daily storage and carrying. Pingfang electric wheelchair adopts hub type brushless motor, which can save electricity, save energy, and have a longer driving range, making your trip more comfortable. One-button quick belt folding, income comfortable, operation brief.The use of brushless motor makes the vehicle's energy conversion efficiency greatly improved, and then enhances the range of the vehicle;Aluminum frame, front and back folding structure;Up and down can be turned up type handrails, adjustable before and after the safety of the handle.
Aluminum alloy has high specific strength, light weight, good fluidity, strong filling capacity, good corrosion resistance and low melting point. It is widely used in locomotive parts, medical equipment and other industries.
Lightweight aluminum transit wheelchair.It can be put into trunk easily for its foldable lightweight aluminum alloy frame.Aluminum frame enables the wheelchair ultra-lightweight, only weighs 18.5kg.
The product specifications you cared most
Model Number | DYN30A (D07) | Type | Elecctric Wheelchair |
Net Weight | 18 KG / 39.68 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
Distance | 15KM/ 9.3mi Or 30KM/18.64mi | Maximun Speed | 6KM/H |
Load Capacity | 100kg/220lb | Charge Time | 5h |
Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
Unfolded(LxWxH) size | 87.5x57x87.5cm | Seat Size | 40*44*6cm |
Folded Size | 57*29*69cm | Packing Dimension | 65*36*77cm |
Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres | Rear Wheel | 8” Rubber wheel filled with PU |
Joystick | Left, Right or Backrest***** | Cushion | Removable |
Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
Anti-tip device | Yes | Seat Belt | Yes |
Tools | Yes | Flip-up Armrest | Yes |
Battery type | Lithium Ion Battery | Color | Yellow, Black, Red, Silver**** |
*Error and uncertainty in measurement
Packaging
Individual Package Weight | 25kg/55lb | # of PCS /Master Carton | 1pc |
Individual Package Dimension (L*W*H) | 65*36*77cm | # of 20'' container | 162pcs |
Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 324pcs |
*Error and uncertainty in measurement
Featured
Foldable and Ultra Light

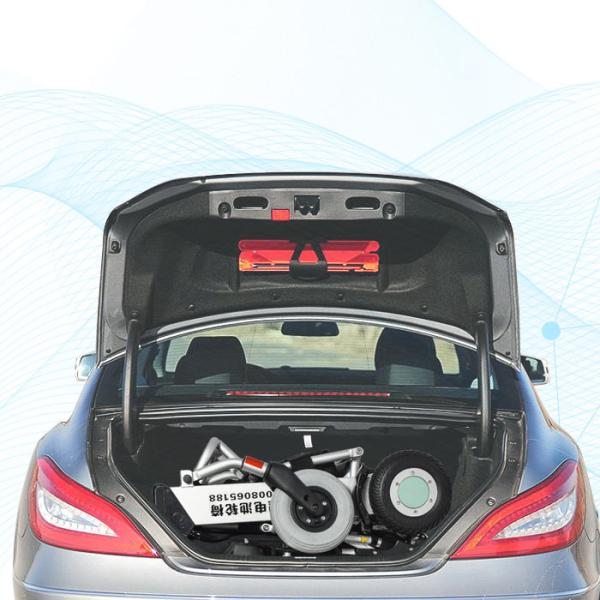

Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space. The whole Frame N.W just 18 kg.
Flip-up Armrest

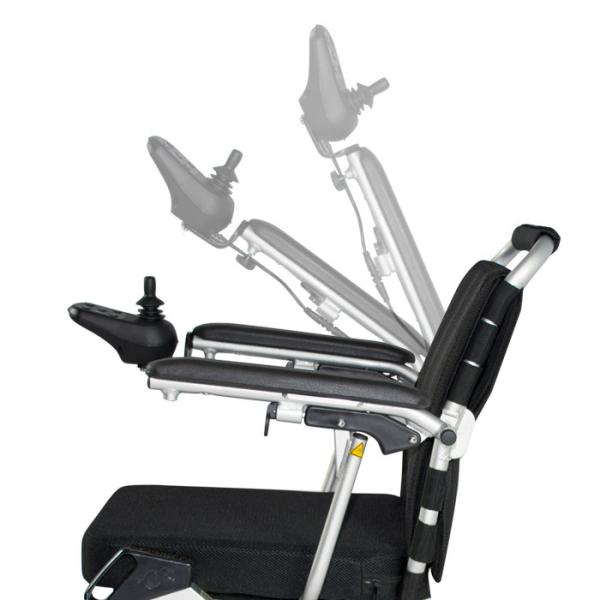

Power wheelchair with flip up armrest. It is very convenient for users to get up and down the wheelchair, and the armrest can be lifted when approaching the table.
Quiet
Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
