Brushless Motor Alu Frame Power Wheelchair
Model: F309
Company information
PF Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
The product specifications you cared most
Net Weight with 1 standard battery pack | 24kg (53 lbs) |
Max Speed | 6 km/hr (3.7 miles/hr) |
Maximum Seat Capacity | 100kg (220 lbs) |
Seat Width | 48cm (19”) between armrests |
Seat Depth | 450cm (17.7”) |
Seat Height From Ground (Front) | 49cm (19.3”) |
Seat Height From Ground (Back) | 47cm (18.5”) |
Turning Radius | 75cm (29.5”) |
Folded Size L X H X W | 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”) |
Opened Size | 94cm x 90cm x 58cm (37” X 35.4” X22.8”) |
Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”) |
Max Distance / Full Charge | ~18km with 1 battery (15% less in cold weather) ~36km with Optional 2nd batttery |
Charge Time (for 1 battery) | 4 hours |
Slope Capability | 10˚ |
Battery Type | Soft Pack Polymer Lithium Ion Battery |
Motor Type | Latest Brushless Motor |
Motor Power | 180W x 2 |
Front Wheel | 7” |
Rear Wheel | 9” |
Frame Material | Quality Aluminium Alloy |
Rear Tire Type | Rigid PU tyre |
Armrest | Raisable |
Footrest | Foldable |
Backrest | Foldable |
*Error and uncertainty in measurement
Wheelchair Details

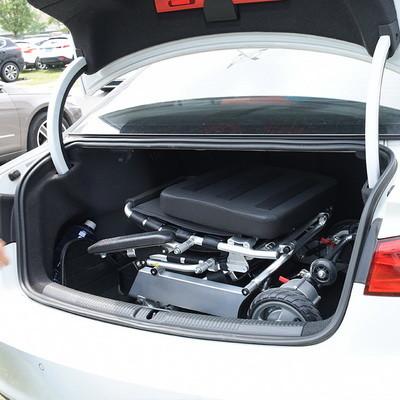

Portable foldable electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
FAQ
Q1. May I have a sample order for this electric wheelchair? And what is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ 1PC electric wheelchair for sample checking is available.
Q2. What about the lead time?
A: We have sample in stock, usually one 20 GP container (about 100 pcs) delivery time is 30 days.
Q3. Is that possible to print my logo on electric wheelchair ?
A: Yes. we accept OEM/ODM orders. It is available to print logo on electric wheelchair. Please send your HD logo before our production and will confirm with u until get your satisfaction for the sample.
