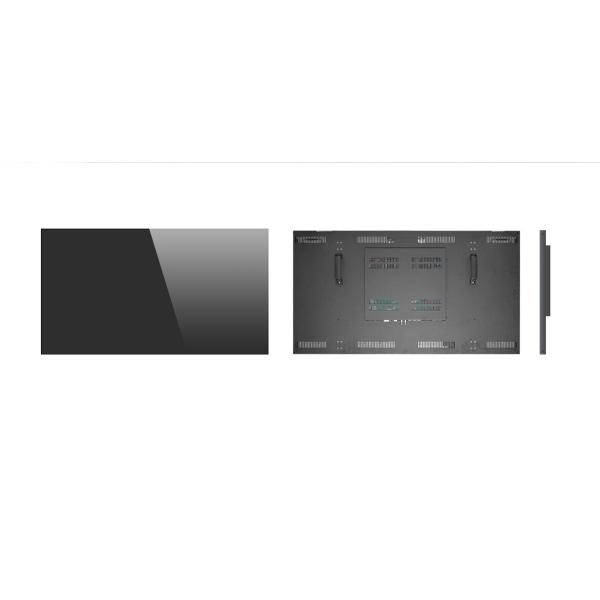

46Inch LG 2x2 LCD Video Wall Display FHD Resolution 133mm Thickness
46Inch LG 2x2 LCD Video Wall Display FHD Resolution 133mm Thickness
Specifications
Brand Name :
ADKIOSK
Model Number :
lcd video wall
Certification :
CE,FCC,ROHS, CB ,ISO9000, CCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
5-10 days
Packaging Details :
outter paper box, middle wooden box and inner foam
gap :
3.5mm
Module :
LTI460HN11
After-sales Services :
online support
Name :
46 inch DID lcd video wall
type :
2 * 2 stand cabinet
Display Mode :
Normally Black
Panel parameter :
Haze5.5%, Hard-coating(3h)
Description

46 Inch 3.5mm Bezel 2x2 FHD Resolution stand cabinet bracket Lcd Video Wall display

Specification

Name 46" DID lcd video wall
Panel parameter size 46inch
Type horizontal wall mounted
Module size LTI460HN11
Brand Samsung
resolution 1920*1080
brightness 500cd/m*2
weight 15kG per piece
Pixel pitch 0.7455(h)x0.7455(v)mm
Surface Treatment Haze5.5%, Hard-coating(3h)
Display Colors 8bit-16.7m
Pixel Arrangement RGB Vertical Stripe
Display Mode Normally Black
view angle 178°/178°(H/V)
Gap 3.5MM

Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11

46Inch LG 2x2 LCD Video Wall Display FHD Resolution 133mm Thickness

46Inch LG 2x2 LCD Video Wall Display FHD Resolution 133mm Thickness

Features

1. Reliability of LCD splicing wall

Monitors and splicing curtain walls generally require continuous work 24 hours a day, 365 days a year. This requires the monitors and splicing curtain walls to have the

characteristics of reliability and high stability to ensure the stable and reliable operation of the system.

2. The practicality of LCD splicing wall

LCD splicing has a large combination space: either small screen splicing or large screen splicing can be used; it can be one-to-one single-screen splicing, or a pair of M×N

full-screen splicing; and large and small screens can also be mixed together. According to the customer's system scale and application requirements for the LCD splicing

curtain wall system, according to the use environment of the system, select appropriate products and splicing methods, design specific implementation plans to meet the

application requirements of the system.

3.The economy of LCD splicing wall

The emergence of the LCD splicing wall solves the various defects of the traditional TV curtain wall, and provides the best large-screen display system for convenient,

comprehensive and real-time display of the video information of each system, especially for remote real-time command and dispatch projects. LCD splicing wall is the most

practical, most advanced, most reliable and most economical large-screen display equipment today.
