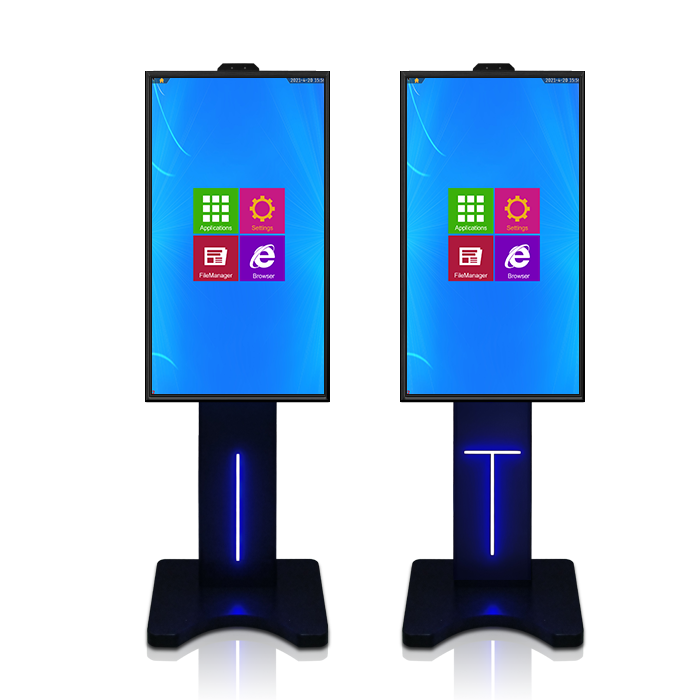

43-inch ultra-high-brightness LCD advertising player suitable for window display
Specification
LCD panel | Size | 43 inches (optional 43”49”55”65”) |
Panel technology | IPS ,M+(WRGB) | |
Resolution | 1920 X 1080p (4K optional) | |
Display area | 943.7 × 531.9 mm (H×V) depends on the screen size | |
Chromaticity | 16.7M | |
Viewing angle | 178°(H)/ 178°(V) | |
Brightness | 2500 cd/m2 (700-5000 cd/m2 optional) visible in sunlight | |
Contrast | 5000:01:00 | |
Response time | 5ms | |
Display mode | Support horizontal and vertical screen | |
Audio system | Trumpet | 2 x10W (8Q2) |
Sound mode | stereo | |
power supply | Input voltage | AC100-240v 50/60HZ |
Standby power | ≤1W, support low-power standby mode | |
Exterior | Material | Aluminum profile frame + sheet metal shell black |
Colour | Black | |
Installation method | Conventional wall hanging, optional hanging bracket and floor stand | |
working environment | Operating temperature | 0C to 40℃ |
Working humidity | 10~80%RH | |
Machine life | 50000 hours | |
CPU | Optional Android motherboard/computer motherboard/stand-alone version | |
RAM | Android comes standard with 2GB by default, and computer motherboard comes with 4GB by default | |
Built-in memory | Android comes standard with 8GB by default, and computer motherboard comes with 128GB as standard | |
Decoding resolution | Support 4Kx2K@60fps ultra-clear decoding | |
operating system | Android version/computer version/stand-alone version (optional) | |
Play mode | Support multiple playback modes such as looping, timing, and insertion | |
Network support | Ethernet, WiFi, 3G/4G network, wireless peripheral expansion | |
Video playback | Support video formats including MKV, MOV, MP4, AVI, TS, MPG, ASFLV, OGG, RM, etc. | |
Image Format | Support 2 USB external interfaces such as BMP, JPEG, PNG, etc. | |
USB | 2 USB external ports | |
Ethernet | 1, 10M/100M adaptive Ethernet | |
LVDS output | 1, supports VESA/JEITA format, supports up to 1080P output | |
HDMI output | 1, HDMI1.4 standard interface, up to 1080P output | |
Audio and video input/output | 8 ohm 6W dual audio power amplifier output | |
RTC real clock | support | |
Timer switch | support | |
System Upgrade | Support TUSB/T card/network upgrade | |
bright adjustment | Built-in automatic light sensor controller, automatic adjustment of screen brightness |
Features
structure
Ultra-thin shape, ultra-thin frame, simple and stylish appearance
show
Using high-brightness display, the brightness reaches 2500nits, and the design life is 50000h. In a bright and direct sunlight environment, it can
Provide excellent performance.
The high-brightness display satisfies the clear view in the sun, and the viewing angle is 178°/178°.
The display is equipped with an automatic light-sensing system, which can change the brightness of the display according to the ambient light.
Temperature control
Built-in 4 silent fans to ensure heat dissipation, low-noise design allows the product to integrate with the surrounding environment.
Cloud Intelligent Advertisement Publishing System (CMS) - optional
The system adopts the B/S architecture, no need to install the client, you can open the IE browser on any computer to log in to the control background.
All terminals perform any cloud management, create advertising programs, save and release, and can monitor in real time.
Smart split screen system
Can support a variety of split screen methods. When creating an ad, you can freely stretch and drag the display area and size. Can edit videos,
Pictures, subtitles, RSS text, mix broadcast, time, weather, logo, webpage, SWF, AV simultaneous playback, etc.;
The system is equipped with digital calendar clock block, weather forecast module and program template library, supports self-designed templates, template preview function.
System compatibility and scalability
Supported video encoding formats include MPEG-1/2/4, H.263, H.264, WMV9, RV8/9/10, Divx-3/4/5, etc.
Supported video packaging formats include MKV, MOV, MP4, AVI, TS, MPG, ASF, FLV, OGG, RM, etc.;
Supported audio coding formats include MP3, WMA, WAV, EAAC+, APE, FLAC, BSAC, OGG, etc.;
Supported image encoding formats include JPG, PNG, BMP, etc.
