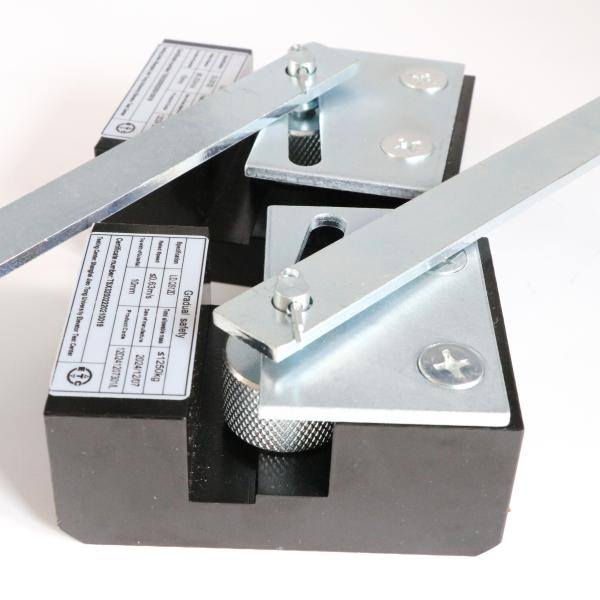

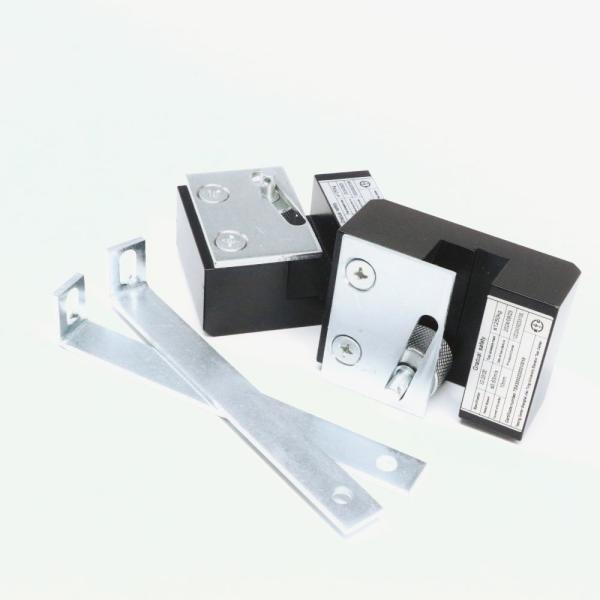

L-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For Elevator
L-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For Elevator
L-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For Elevator
L-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For Elevator
Specifications
Brand Name :
Zanfeng
Model Number :
ZF.QS12D/X02
Certification :
GB
Place of Origin :
China、sahnghai
MOQ :
1
Price :
49USD/Pcs,Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Negotiation
Delivery Time :
15~30 work day
Packaging Details :
Carton Box
Product name :
Elevator safety gear
Type :
Instantaneous safety gear
Executive standard :
GB/T 7588.1-2020 GB/T 7588.2-2020
Guide :
≤10mm
Rated speed :
≤0.63m/s
Allowable grossmass :
≤1250kg
Original :
China Mainland
Used for :
Eevator Lift
Description
Low Price Elevator Safety Parts Elevator Instantaneous Safety Gear
Elevator safety gear
L-type pull rod
Application Scenarios
L type lifting rod is suitable for the elevator car structure is complex, the space is limited. For example, in some small Villa elevators or old-fashioned elevator renovation projects, due to the small elevator shaft space and compact equipment layout, the L-type lifting rod can realize the effective connection between the safety gear and the lifting device without occupying too much space. It can also be used for some safety gear systems with special requirements for the lifting direction. Through reasonable design of the L-shaped angle, the lifting power can be accurately transmitted to the trigger position of the safety gear.
Straight Rod
Application Scenarios
Straight tie rods are widely used in various regular elevator systems. Especially in the elevator car and safety gear, pulling device layout is more regular, straight rod can play its advantages. For example, in most modern high-rise residential elevators and commercial office elevators, due to the relatively standardized hoistway design and equipment layout, the straight rod can directly and efficiently achieve the lifting action of the safety gear to ensure the safe braking of the elevator.
Catalogue
Catalogue of safety gear products
NO. Mode Type Rated Speed P+Q Guide Executive standard
1 ZF.QS12D Instantaneously type safety gear ≤0.63m/s ≤1250kg ≤10mm GB
2 ZF.QS12E Instantaneously type safety gear ≤0.63m/s ≤1350kg ≤10mm GB
3 ZF.QJ32A Progressive type safety gear ≤2.5m/s 750~3200kg ≤16mm GB
4 ZF.QJ38C Progressive type safety gear ≤2.5m/s 700~3800kg ≤16mm GB
5 ZF.QJ40S Progressive type safety gear ≤2.5m/s 1000~4000kg ≤16mm GB
6 ZF.QS80A Instantaneously type safety gear ≤0.63m/s ≤7200kg ≤16mm GB
7 ZF.QS90A Instantaneously type safety gear ≤0.63m/s ≤12500kg ≤16mm GB

Picture details

L-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For ElevatorL-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For ElevatorL-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For Elevator

Our products

1. Button series: ordinary button, induction button, lock button

2. Elevator display: TFT Video Machine, image machine, LCD, 7-Segment, dot matrix, etc.

3. Elevator COP LOP series, Touch COP LOP, etc.

4. Elevator Hall Lantern

5. Elevator traction machine

6. Elevator safety components

7. Customized house hold Villa elevator series

For more information, please consult

We pursue the sustainable success with customers. When it comes to Elevator components, we are about as materials as they come. That’s because we are in the elevator components many years with very wide supply system. We are more committed to the intelligent development of elevators in the near future and becoming the preferred partner for smart and sustainable city development.
L-Type Straight Safety Gear Lifting Rod Safety Device Instantaneous Safety Gear For Elevator

FAFQ

1. How to order ?
Inquiry - quotation - confirm-send Pl - make the payment - arrange the parts-delivery - receive the parts.

2. What about the quality of your products ?
All of our products are new and original,we have 100% gurantee.

3. How about the price of products ?
Rices depends on your purchase unit. The more quantity,the lower price. our price is competitive

amoung competitors in the same field.

4. When you deliver products ?
We have thousands of products available in stock, which can ensure to send you goods within
