Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels
Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels
Specifications
Brand Name :
elite-indus
Model Number :
PLB
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 pcs per month
Delivery Time :
20-25 days
Packaging Details :
wooden box
Material :
stainless steel
Type :
hot press platen
Length :
2700 mm
Width :
1370 mm
Thickness :
100 mm
Tolerance :
+ / - 0.05 mm
Heating / Cooling Sources :
Steam, Water, Oil
Customized :
Yes
Description

Thermic oil heated hot press platen Stainless steel hot press platen

Heated plates are made of high-quality sheet steel / stainless steel / aluminium with the certified chemical composition of the materials and ultrasonic homogeneity verification.
The plate has drilled and milled channels for the flow of heating medium (thermal oil, water or steam). The channels are interconnected and form a heating field. The corresponding arrangement and the diameter of the channels in the plate provide an efficient heating and steady temperature on the working surface of the plate.

Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels

We make Platens as small as 200mm x 200mm for laboratory presses and largest as 3200mm x 9000mm for big lamination or hydraulic presser.

We specialized in heated platens, hot press platens, design and fabrication of hydraulic presses, metal fabrications, prototype projects, large industrial fixture tooling and contract machining.


High-quality material and waterproof welds provide long-lasting and reliable operation of the plates.

Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels

Material

Carbon steel Q235B, Q345, 45#

Stainless Steel 304, 316

Aluminum: 6061, 5052, 7075

Applications

Laminating Industries

Rubber Molding

Plastic Molding

Board Industries

Forest Products and Furniture

Composite Materials and Fabrications

Compression Molding

Specification:

1. Length: 200mm to 9000 mm

2. Width: 200mm to 3200 mm

3. Thickness: 10mm-200 mm

3. tolerance: - /+0.05 mm
4. Surface roughness:1.6
5. Surface temperature tolerance: 3 C
6. No leakage at welding position when hydraulic pressure is up to 25kg/cm2

Any size you need.The size , thickness and meterial can be designed as the customer requirement.

Pre-sale services:

1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

After-sale services:

1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging

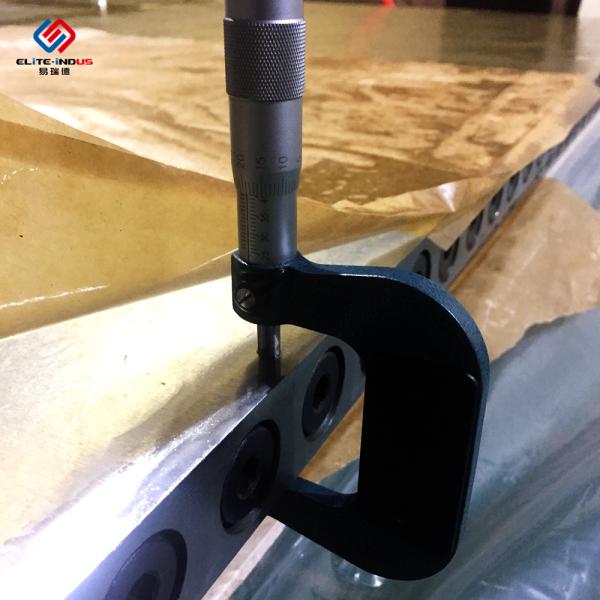

Quality Control

All plates from Anhui Elite are tested for water permeability under the adequate pressure.
High-quality machining provides appropriate working surface and smoothiness of heating plates.

Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels

Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels

Packing

Stainless Steel Oil Heated Hot Press Plates With Drilled Milled Channels

After the final inspection, the plates are protected from corrosion.

The plates are packed depending on the transport type.

Packaging provides safe manipulation and guarantees damage-free delivery.
