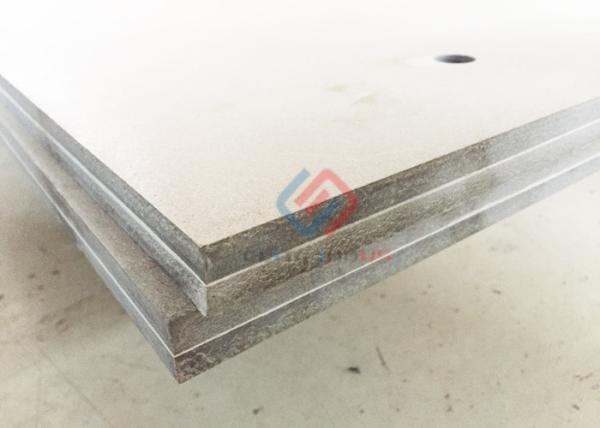

Customized Chroming hot press plate for hot press with high quality

mainly products are the full production line of particleboard , MDF, multi-layer veneer board, blockboard, as well as varieties of new type hot press machine, pre-press machine, CNC automatic paving machine, dryer, CNC automatic edge trimming machine, dust-removal machine, drum dryer series, roller/net-bag venner dryer and other various kinds of wood-based panel production equipment.

Advantages:

· Excellent thermal uniformity on the surface

· Less scrap parts and more heating/cooling control

· A more responsive platen

· Quicker heat up times

· Rapid thermal recovery for quick cycle applications

Detailed specifications:

1. Heat carrier: Oil or Water or Steam

2. Steel material: Q235B or Q345

3. Size of hot platen:

specification 01: 2100*1100*42mm
specification 02: 2700*1370*42mm
specification 03: 2700*1370*52mm
specification 04: 2600*1500*120mm
specification 05: 2600*1500*100mm
specification 06: 2600*1400*100mm
specification 07: 2600*1400*120mm

Remarks: We can design this hot platen according to your request.

4. Parallelism of surface tolerance: 0.03mm sqm

5. Smoothness accuracy less than 1.8 microns

6. Thickness tolerance: +/- 0.5mm

7. Diameter of cross holes internal: 30mm or 25mm

8. Distance between cross channels: 90mm

9. Accuracy of alignment inside channels: 0.033mm

10. Hydraulic pressure of welding gap: 30kg/cm2

11. The uniformity tolerance of surface temperature: 3°C

Data Sheets:

Introduction of Plate

ELITE Heating platen application advisor. In manufacturing, a platen is a metal plate used in presses. The press can be for laminating or for the production of a wide range of items including gaskets, particle board, semiconductor wafers, and plywood. Many of these processes require heating the platen to high temperatures. These heaters deliver high watt densities and are designed to fit in tight spaces. Heating is a complex process governed by the principles of thermodynamics, fluid mechanics, and heat transfer. Heat transfer, in particular, is useful knowledge as it will help inform important aspects of heater selection and system design. Heat transfer is the movement of heat from one area (or object) to another, always from areas of high concentration (hot) to areas of low concentration (cool).

Packing of Platen :

After the final inspection, the plates are protected from corrosion. The plates are packed depending on the transport type. Packaging provides safe manipulation and guarantees damage-free delivery.

Our Company:

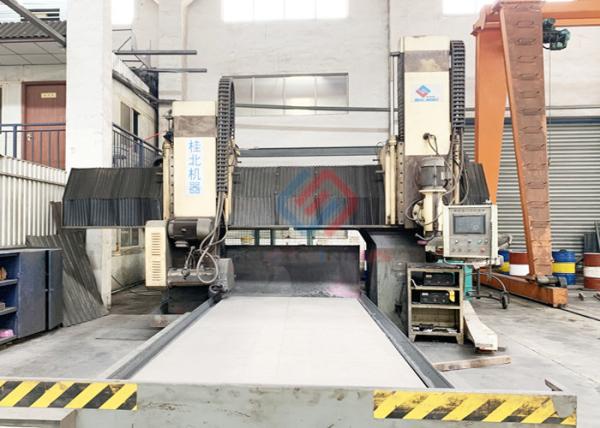

Our factory now has multiple large gantry milling machine several sets of advanced hot platen

production lines,excellent and advanced technology, Scientific testing methods to strict management of every process,ensure qualified products Shipped.Our hot platen products are widely trusted by

customers. What’s more, Our factory can design and manufacture various product specifications according to customers'requirements.
