Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
Specifications
Brand Name :
EI
Model Number :
PLA 22
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 pcs per month
Delivery Time :
10-25 days
Packaging Details :
wooden box
Material :
steel
Production property :
900 pcs/ month
Length :
as per request
Width :
as per request
Thickness :
as per request
Tolerance :
+ / - 0.05 mm
Heating / Cooling Sources :
Steam, Water, Oil
Customized :
Yes
Description

High quality 2600*1400*100 mm hot press platen for mdf hot press machine

Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate

We manufacture all varieties of platens including steam, hot oil, electrically heated, high temperature, and various combinations of heating/cooling.Regardless of press size or type, our manufacturing and technical organization has the expertise and experience to meet your needs.

Material:

Carbon steel Q235B, Q345, 45#

Stainless Steel 304, 316

Aluminum: 6061, 5052, 7075

Typical Heating / Cooling Sources of Platens:

Water

Oil

steam

Electric

Specification

Length 200mm to 9000mm
Width 200mm to 3200 mm
Thickness 10mm-200mm
Tolerance +/- 0.05mm
Diameter of the channels 20 – 40 mm
Normal Plate Size

2100*1100*42mm
2700*1370*42mm
2700*1370*52mm
2600*1500*120mm

2600*1500*100mm
2600*1400*100mm

2600*1400*120mm

Welcome your drawing, we are manufucture all kinds of customized Platens

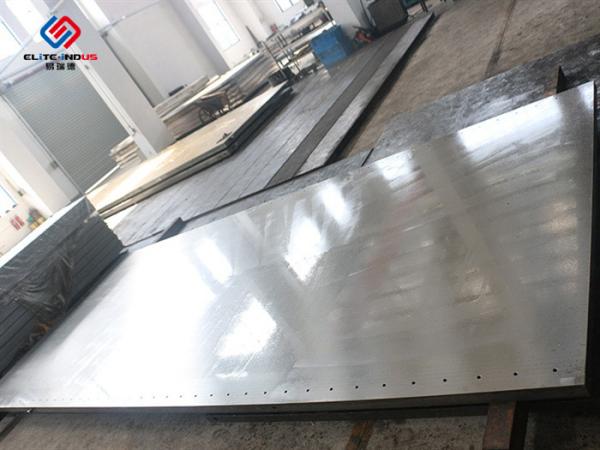

Factory View

Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate

Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate

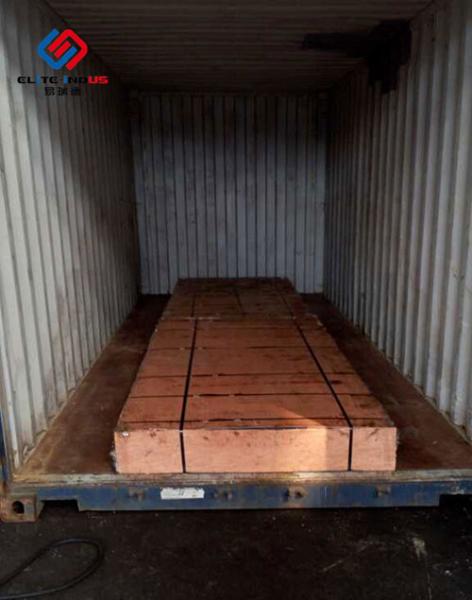

Packing

After the final inspection, the plates are protected from corrosion.

The plates are packed depending on the transport type.

Packaging provides safe manipulation and guarantees damage-free delivery.

Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate

Applications

Laminating Industries (manufacturing of plywood, hard board, and particle board, etc)

Rubber Molding

Plastic Molding

Board Industries

Forest Products and Furniture

Composite Materials and Fabrications

Compression Molding

Quality Control

All plates from Anhui Elite are tested for water permeability under the adequate pressure.
High-quality machining provides appropriate working surface and smoothiness of heating plates.

Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate

Steel Heated Platen For Mdf Hot Press Machine 2600*1400*100 Mm ISO Certificate
