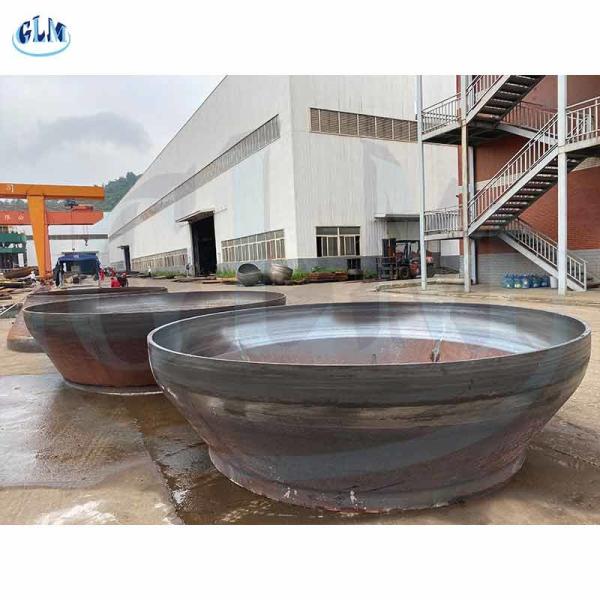

Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom
Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom
Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom
Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000
Packaging Details :
wooden box and iron shelf or as percustomers requirement
Head Code :
Conical Head
Technology :
Hot pressing,cold pressing
Reduction ratio: :
about 10%
Certificate :
ISO9001 ,ISO14001,OHSAS18001
Description

Carbon Steel conical end caps customised dish cap

Product Description

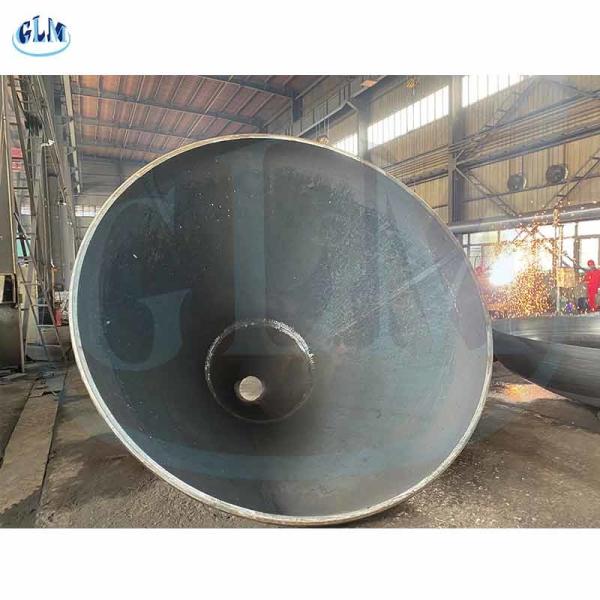

Conical Head is widely used for vessel bottom or cover plates. Our asme conical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. With the shape of concentric cone, the conical head consists of a large end cone and a small end. Cone and large end of the connection, due to geometric discontinuity, the radius of curvature of the mutation, so there will be a large lateral thrust, causing a large edge stress, prone to bending, it is necessary to strengthen.the tapered head The cone head type is divided into CHA (30), CHA (45), CHA (60) by half angle. According to the size of the end of the type is divided into non-folding conical tank head and hemming conical dished head.

Specifications:

Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available
