SA516 Gr70N 500mm Torispherical Dished Head Types Of Dish End In Pressure Vessel
SA516 Gr70N 500mm Torispherical Dished Head Types Of Dish End In Pressure Vessel
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000
Packaging Details :
wooden box and iron shelf or as percustomers requirement
material :
SA516 Gr70N
Tank head Surface Treatment :
Sand Blasting, Pickling
Tank head Applications: :
Such as oil, chemical industry, water conservancy
Diameter: :
89mm--12000mm
Description

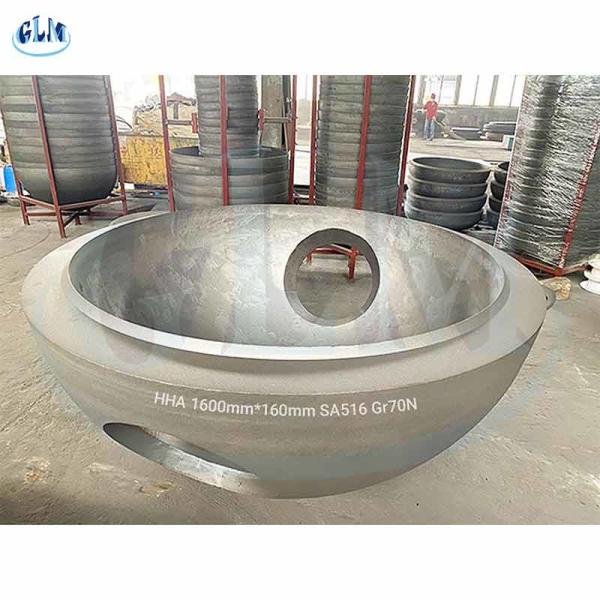

CUSTOM PRESSURE VESSEL HEAD ( HEMISPHERICAL HEADS) HHA1600mm*160mm SA516 Gr70N

Product Description

Head For Tank body Building ( Dished Heads End Cap Stainless/Carbon Steel or Alloy Materials Elliptical Ellipsodial Torispherical Conical Hemispherical)
Elliptical Heads
Torispherical Heads
Dished Head
Joggle Dished Head
Dished Head with Hot Press
Hemispherical Dished Head by Cold Press

Fabricated from spherical cap and segments
This method is used for larger sizes and/or thicknesses and with special materials and/or material combinations. The product is fabricated from hot or cold-formed segments. After pressing, all segments are calibrated and cut to size in accordance with the required form and dimension. The segments are then set up, test assembled and marked. The fabricated products can then be fully welded as required

Specifications:

Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available

Product Image
