201 Stainless Steel 89mm 1000mm Torispherical Dished End Hemispherical Heads For Bolier
201 Stainless Steel 89mm 1000mm Torispherical Dished End Hemispherical Heads For Bolier
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000
Packaging Details :
wooden box and iron shelf or as percustomers requirement
Head Code :
Hemispherical Heads
Process :
Forging+machining+heating Treatment
Material :
Ss/CS/Clad Plates
Standard :
International
Keywords :
Torispherical Dished End
Application: :
Industrial hot blast stove
Package :
pallet ,steel structure or as required
Description

Torispherical Dished End Hemispherical Heads for Pressure Vessel Bolier

Description

Wuhan Linmei can form hemispherical heads by cold press, hot press, and petal fabrication.

Nommaly Hemispherical heads by Cold press with thin plates is for food industry, Hot press and petal fabrication is for oil and gas industry.

Max dia 6100mm is for cold press of our cold press machine, and max dia 10000mm is for hot press for our hot press machine.

for above one photos, one is petal fabrication for heavy thicker plates.

finally Solution heat treatment is requried as customer requriement at abve 1000degree.

Our company are ASME R & U & U2 stamp holder and can provide dished heads as PED / NB / GB / ASME standard.

The dished heads for oil&gas industry is always requried ASME VIII-1 U stamp and ASME VIII-2 U2 stamp.

Specifications:

Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available

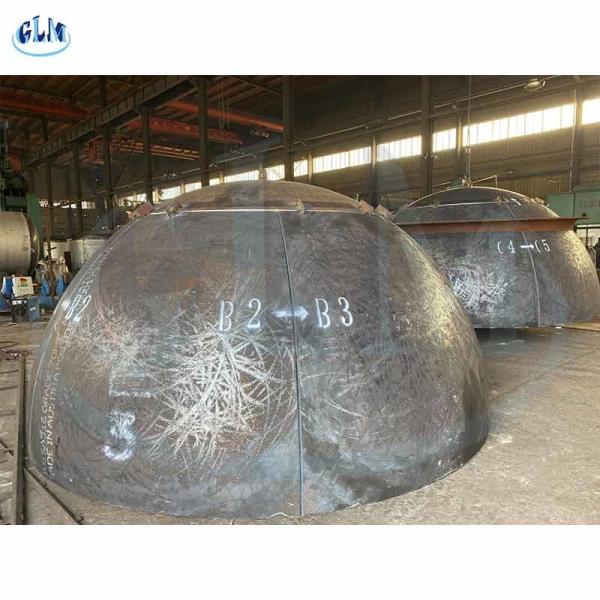

Torispherical Dished End Hemispherical Heads​ Product Image
