ASME 2 To 1 SS304 Spherical Heads Elliptical Dish End Domes Head For Boiler PED
ASME 2 To 1 SS304 Spherical Heads Elliptical Dish End Domes Head For Boiler PED
ASME 2 To 1 SS304 Spherical Heads Elliptical Dish End Domes Head For Boiler PED
ASME 2 To 1 SS304 Spherical Heads Elliptical Dish End Domes Head For Boiler PED
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000
Packaging Details :
wooden box and iron shelf or as percustomers requirement
Head Code :
Spherical head
Technology :
Hot pressing,cold pressing
Reduction ratio: :
about 10%
Certificate :
ISO9001 ,ISO14001,OHSAS18001
Description

Large Diameter spherical Segmental Dish Domes Heads segmented dish head For Boiler Parts pressure vessels

Product Description

We specialize in the exotic material/ special shaped/ super-thickness/ ultra heavy heads fabrication of conventional tank heads, carbon, alloy, and low alloy steels, stainless clad, titanium, nickel, aluminum, etc. Our products are primarily intended for pressure vessels, tanks, and boilers, and manufactured to all applicable GB, ASME, DIN standards. The tank heads can be fabricated in configurations such as, dished orelliptical heads, spherical heads, torispherical heads, conical heads, flat bottom heads, or ASME 2:1 semi elliptical.

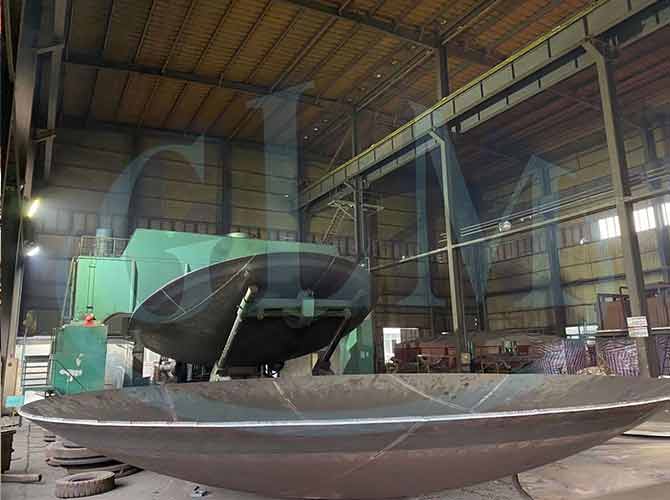

Spherical head Product Image

Specifications:

Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available

Scope of application


Unlike an elliptical workpiece, a spherical head does not require flanging. This is why spherical heads can be used in the internal structures of pipelines. Besides that, they are widely used in pharmaceutics, power industry; and chemical and food processing industries.

Also, the spherical composition of products allows using them in architecture and design, improvement of household plots, and other areas. Non-flanged metal products are elements of cylindrical vessels and machines operating under low pressure or filling vessels (filter presses, fuel tanks, accumulators, tank trucks, etc.).

Packing and Delivery

Pallet packing, wooden case packing, steel pallet packing, nude packing, according to customers' requirement.
