3MM 6000MM Stainless Steel Dish Head PED Semi Ellipsoidal Tank Head
3MM 6000MM Stainless Steel Dish Head PED Semi Ellipsoidal Tank Head
3MM 6000MM Stainless Steel Dish Head PED Semi Ellipsoidal Tank Head
3MM 6000MM Stainless Steel Dish Head PED Semi Ellipsoidal Tank Head
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Price :
$5.00 - $125.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000
Packaging Details :
wooden box and iron shelf or as percustomers requirement
Material :
Stainless Steel
Thickness: :
2mm–300mm
Diameter :
89mm–10000mm
Technics: :
Forged
Description

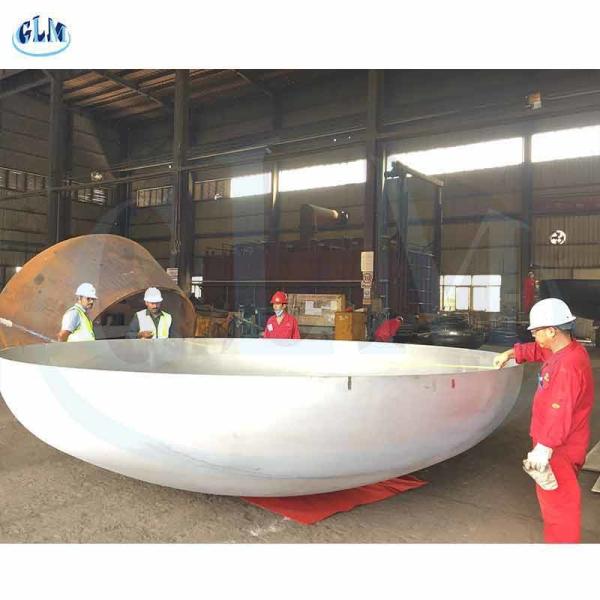

Stainless Steel Elliptical Head/Dished Heads End Tank Head /Tube End For Boiler Pressure Container

Description:
Dished end, also called dished head or tank head, is an important pressure element for pressure vessels and boilers. The dished end is usually used at both ends of the pressure vessel and welded with the cylinder. According to the different geometric shapes, it can be divided into elliptical tank head, torispherical end, hemispherical dish end, spherical end, conical end, flat end, etc. High pressure vessels and boiler heads are mostly hemispherical, and elliptical are used for medium pressure and only a small number of low pressure vessels use torispherical.


Specifications:

Brand Name:GLM
Diameter:89mm-10000mm
Thickness:2mm--300mm
Reduction Ratio:About 10%
Material:Duplex steel,carbon steel,stainless steel,aluminum,titanium and etc.
Technology:Hot pressing, Cold pressing
Surface Treatment:Sand Blasting,Pickling
Test:UT,RT,MT,PT,TOFD.
Applicable Standard:ASME, PED and GB
Certificate:ISO9001 ,ISO45001,OHSAS18001
Applications:Petroleum, chemical industry, water conservancy, electric power,boiler, machinery, metallurgy, sanitary construction etc.
Packaging:wooden box and iron shelf or as percustomers requirement
