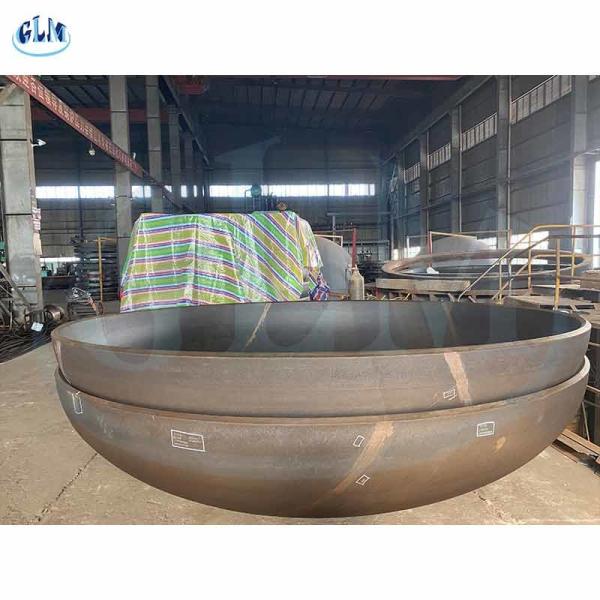

8000mm ASME Sand Blasting Stainless Steel Dished Heads Pressure Vessel Dome Ends
8000mm ASME Sand Blasting Stainless Steel Dished Heads Pressure Vessel Dome Ends
Specifications
Brand Name :
GLM
Model Number :
CAP
Certification :
ASME, PED and GB
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
wooden box and iron shelf or as percustomers requirement
Material :
carbon, alloy, and low alloy steels
Head Code :
PRESSURE VESSEL TANKS HEADS
Outter Surface treatment :
Sand Blasting
Range of Applications :
Industrial
Heat Treatment :
Normalizing
Type :
cap
Product Name :
Pressure Vessel Dished Head
Standard :
ASME, PED and GB
Description

ASME CODE Formed PRESSURE VESSELS DISH ELLIPTICAL TANKS HEADS

Description

Since the depth of the elliptical head is between the hemispherical and the dish-shaped head, the requirements for stamping equipment and molds and the manufacturing difficulty are also between the two, that is, it is easier than the hemispherical head and more difficult than the dish-shaped head. In recent years, the use of spinning technology has brought convenience to the manufacture of large-diameter elliptical heads. Oval heads are widely used in medium and low pressure vessels due to their better overall performance.

Wuhan Linmei has over 20 years of expertise in the manufacturing of high-quality dish heads with numerous happy customers all around the world. We supply a variety of dish heads types such as Semi Elliptical, Torispherical, Hemi Head , Crown & Petal, Dished Head, Flat and Ellipsoidal Head.

Dish Heads also known as dished ends or tank heads are an important component of pressure vessels. There is a multitude of types and sizes of dished heads used in different industries. These dished heads are handled in various methods such as deep drawing, cold forming, spinning, dishing, and flanging, as well as forming the heads in crown and petal segments.

Process

1, Cold Formed
2, Hot Formed Welded (U stamp partial data report)


Welding Processes

Stick-Electrode Semi-Automatic Submerged Arc Gas Shielded

Packaging & Shipping:

  1. Iron Frame
  2. Wooden Box
  3. Iron pallet
  4. Wooden pallet.
  5. Professional fixation
  6. Customer's requirment

Specifications:

Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available
