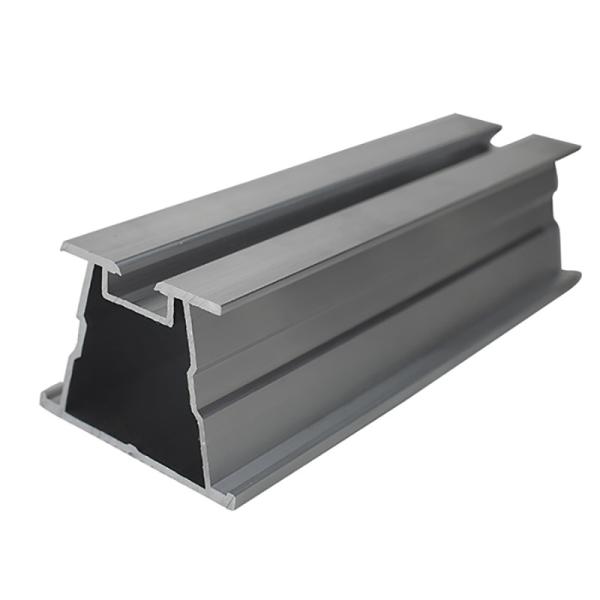

6063-T5 Solar Panel Frame Custom Extruded Aluminum Anodized Aluminum Profile

Basic Information

Production process of solar aluminum frame
1. Extrusion of the solar aluminum frame, that is, put the aluminum round cast rod into the extrusion machine, extrude it through the aluminum frame mold, and immediately quench and cool it quickly.
2. Straightening of the aluminum frame: The aluminum profile that has just been extruded is relatively soft and will be bent and deformed, requiring a straightening machine. Then saw off the head and tail of the material, and send it to the aging furnace for aging.
3. Aging: it is heated to a certain temperature and kept for a certain period of time, thereby greatly improving the strength of the aluminum profile.
4. Aluminum frame sandblasting: Send the aging aluminum profile to the sandblasting machine for surface sandblasting. After sandblasting, the surface of the solar aluminum frame can form a matte effect, which is very beautiful.
5. Anodizing: In order to make the frame more corrosion-resistant by anodizing the surface of the solar frame, the oxide film thickness of the general solar frame profile is thicker than that of the material, and the corrosion resistance is stronger. Generally, there are two types of solar frames: black oxidation and natural oxidation.
The difference between black oxidation and natural oxidation is that there is an additional process, that is, the frame is placed in a black metal salt solution before sealing, so that the metal salt is adsorbed in the pores of the oxide film, and then the pores are sealed.
6. Aluminum frame film: Because the surface of the solar aluminum frame has high requirements and cannot have scratches or scratches, the aluminum oxide profile should be filmed.
7. Aluminum frame sawing: sawing according to the size requirements of the long side and short side of the frame. Use a double-ended saw with a 45-degree bevel so that one person can cut it in one step.
8. Frame punching, mounting holes, grounding marks and riveting points, among which punching, mounting holes and grounding marks can be completed at one time with a combined mold.
9. Short side corners: both ends of the short side need to be inserted with corners and then punched and riveted, so that the corners are fixed and will not loosen.
10. Check the solar aluminum frame: This step includes machine inspection and manual inspection. The stamped frame is placed on the inspection table to check whether the processing size is qualified and whether there are missing processing steps. Then manually inspect the surface one by one for scratches, black spots, uneven color, etc.
11. Pack the tray well, put the long side and short side into their respective trays after inspection, and separate each layer with paper to prevent scratches. Then wrap it in plastic wrap and wrap it in packing tape. If it needs to be exported, it needs to be fixed with wooden boards, and then packed on cartons.

Product Display




Industrial use, aluminum profiles are used in many industrial productions, such as equipment hoods, equipment rack fences, non-standard aluminum profile frames, aluminum profile conveyor belts, automated machinery and equipment, assembly line workbenches, etc.
In terms of construction, doors, windows and curtain walls are more common in this aspect, such as interior and exterior decoration, construction formwork, composite doors and windows, composite aluminum panels, etc.
Most of the aluminum profiles used in these places are because of the corrosion resistance, beautiful appearance, good noise prevention and good light and heat reflectivity of this new material.
Home and car equipment, such as tables and chairs, some home ornaments, connection parts for bicycles and external frames for bicycles, etc.
Radiator, aluminum radiator has many excellent performances in many aspects, and it is a very good material for radiator.
Some beverage equipment, such as the main frame, medical equipment, medical stretcher bed frame, etc.
Solar frame, photovoltaic support, solar photovoltaic fastener parts, etc.

Certificates and Honors

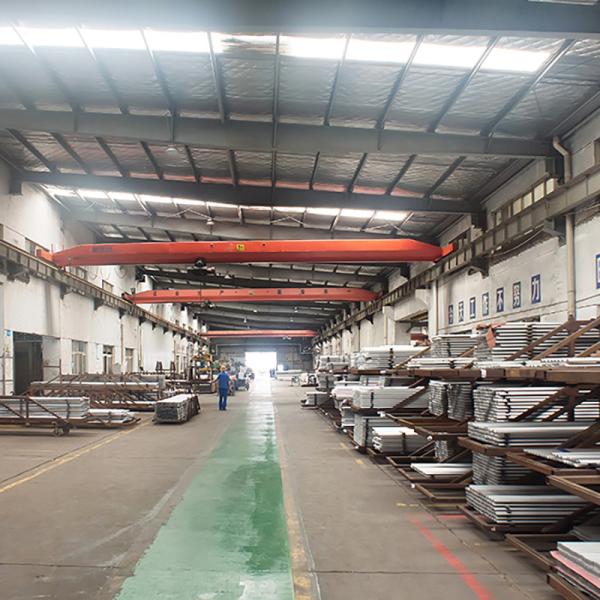

Factory display





Company Profile

Jiangyin Longkang Metal Products Co., Ltd. is located in Zhouzhuang Town, Jiangyin City - the largest aluminum extrusion profile production base. Covering an area of more than 35,000 square meters with more than 350 employees. We focus on metal customization, special-shaped aluminum profiles, aluminum profiles, aluminum tubes, rail transit series, doors and windows aluminum profiles, heat sinks, CNC processed aluminum profiles, interior decoration series, bending series, etc. We also have precision anodizing and various surface treatments, such as PVC film, wood grain, electrophoresis, powder coating, anodizing, etc. After more than 20 years of development, The company has become a modern aluminum production enterprise with perfect quality management system.

The company has the ability to develop and design molds independently, we can produce any extruded aluminum profiles according to your mechanical drawing or sample. Longkang has 10 extrusion production lines (600-3500 tons), one automatic oxidation electrophoresis production line, vertical and horizontal spraying production line per each, and a variety of advanced supporting production, processing and testing equipments. There are also CNT digital control drilling and milling machine(CNC), double head saw, hydraulic saw and punching machine in our processing workshop. The complete technological process can benefit to reduce the production turnover times for semi-finished products, to avoid the damage during transportation, improve the production efficiency, reduce the cost of production,and to ensure the quality and delivery time.

Efficiently treating our customers as partners with sincerity, specialization and satisfaction is our managerial principle. Attributed to the backup of a dedicated technical team, filled with wide and profound knowledge and practice in aluminum profile and world trade for 20 years, the company owns rich experience in product quality control and profile physical properties such as Hardness, Stretchability, Flatness, Straightness, and Tolerance etc. In line with the principle of sharing the preferential cost and joint development, the company has formed an interest community for years with its customers at home and abroad. Sincerely to build up a pleasant mutual trust, cooperative, win-win and value-added sustainable partnership is what we are achieving to grow together with you!

FAQ
Q: Are all color products the same finish?
A: No. With powder coatings, bright colors will be higher than white or gray. Regarding the price of anodizing, the color will be higher than the silver, and the black will be higher than the color.

Q: Do you provide samples?
A: Yes,special customized samples need to provide drawings.

Q: How do you ship your goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Usually it takes 3-5 days to arrive. Air and sea shipping are also optional.
