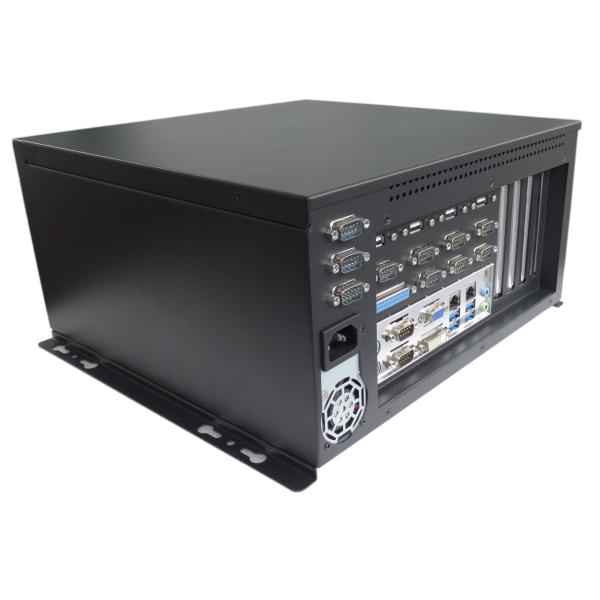

Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
Specifications
Brand Name :
Yanyue
Model Number :
MIS-MATX02
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Embedded Industrial PC
Hard disk rack :
one 2.5 inch hard drive rack
Adapt motherboard :
Inter B75//H81//H110 chip Micro-ATX_5 motherboard
CPU/GPU :
Intel i3 2120
Memory :
4G DDR3
Hard disk :
128G MSATA
Description

MIS-MATX02 Embedded industrial computer,1 PCI or PCIE extension,supporting i3/i5/i7 CPU,supporting multiple serial ports

Features:

■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Supporting all Micro-ATX motherboards of Yanyue

■ Four extended slots

■ Extra 10 Series 1-Parallel 4 USB on the back

■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements

Specification parameters Optional configuration
Chassis All-steel structure, powder-sprayed black Optional industrial grey and other colors
Front POWER/HDD indicator, power button switch, 2 suction fans, 2 USB2.0 Customizable customer LOGO or other requirements
Back Main board square hole, 4 expansion slots; 10 DB9, 1 DB25, 4 USB interface bits Customizable other interface bits
Hard disk rack one 2.5 inch hard drive rack Can add 1 anti-seismic hard disk rack, support 3.5 inch or 2.5 inch hard disk
Adapt motherboard Inter B75//H81//H110 chip Micro-ATX_5 motherboard Miro-ATX motherboard of Yanyue is available
CPU/GPU Intel i3 2120 Support 3, 4, 6, 7 generations desktop CPU or board CPU
Memory 4G DDR3 Optional 2G/8G/16G/32G memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Interface AC input; 6USB (4 USB 3.0); 2RJ45 (gigabit); VGA; HVI, audio output; MIC input; 6COM (standard) Optional extraction of all interfaces on the chassis
Extansion PCIEx16; PCIEx4; 2PCI Depending on the expansion slot on the motherboard
Size No bracket:320mm * 311mm * 158mm Net/Gross Weight 4.5/5KG
Industrial Power Supply 200W Industrial 1U Power Supply 　
Installation mode Bracket installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Installation Dimension Diagram 　Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
